Parking Assist Control Module (PAM) - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal steps in this procedure may include installation details

All vehicles

If equipped, remove the subwoofer. Refer to: Subwoofer Speaker .

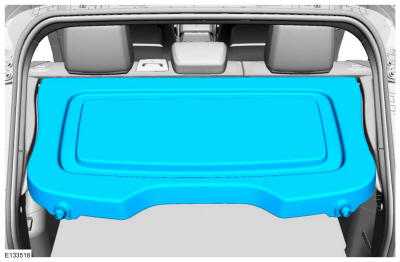

Remove the luggage compartment cover.

Courtesy of FORD MOTOR COMPANY

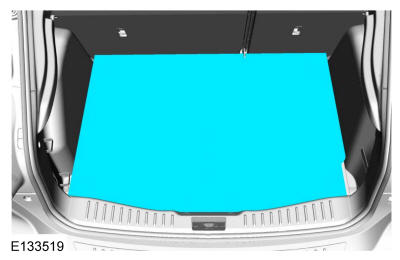

Remove the load space floor.

Courtesy of FORD MOTOR COMPANY

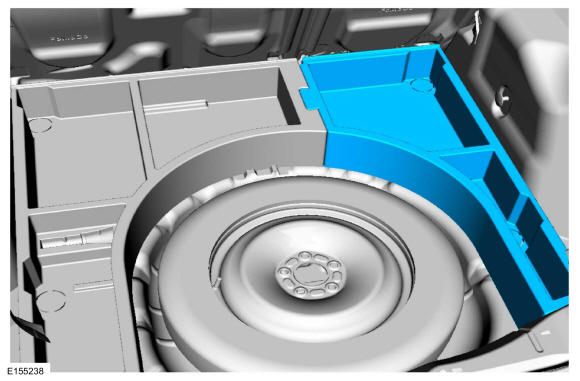

Remove the load space floor filler.

Courtesy of FORD MOTOR COMPANY
NOTE: Four door vehicle shown, five door similar.

Remove the luggage compartment opening trim panel.
- Position the weatherstrip aside.
- Remove the push-pins and release the clips.
Courtesy of FORD MOTOR COMPANY
Remove the upper C-pillar trim panel. Refer to: C-Pillar Upper Trim Panel .
Vehicles with full rear seat backrest

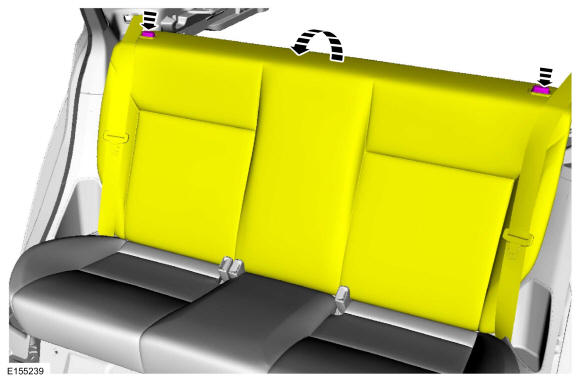

Release the rear seatback and position it aside.

Courtesy of FORD MOTOR COMPANY

Vehicles with split rear seat backrest

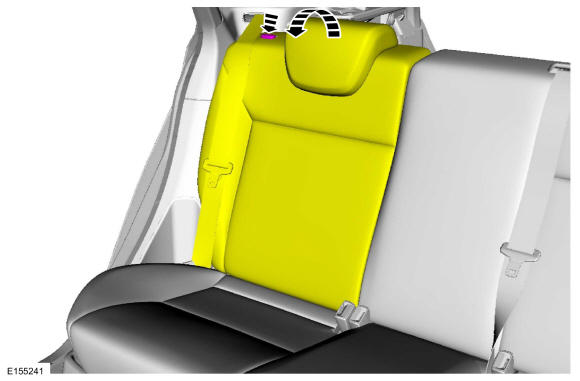

Release the RH rear seat backrest and position it aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

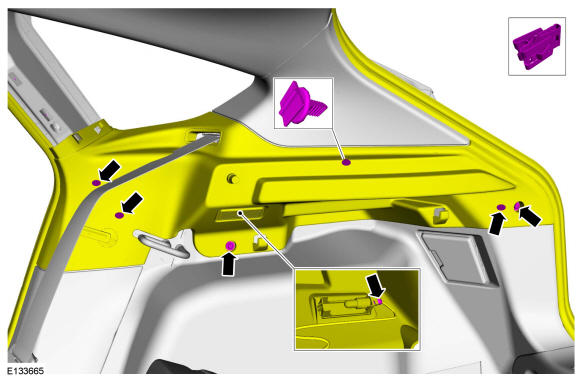

Remove the upper C-pillar trim panel.
- Release the clips and X-mas tree retainers.
- Disconnect the RH load space lamp.
- Position the upper C-pillar trim panel aside.
Courtesy of FORD MOTOR COMPANY

Vehicles with split rear seat backrest

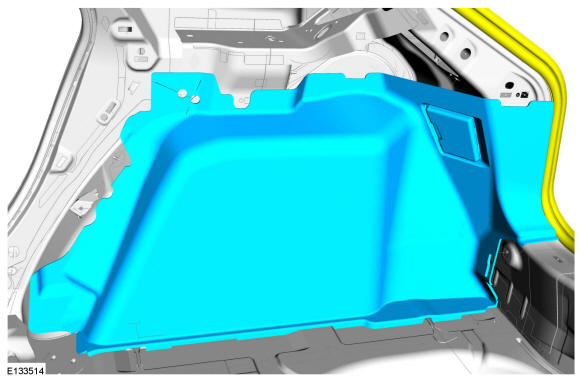

Remove the RH load space trim panel.

Courtesy of FORD MOTOR COMPANY

All vehicles

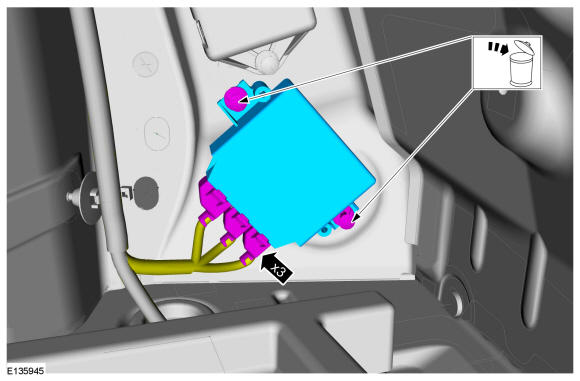

Remove the parking assist control module.
- Disconnect the parking assist control module electrical connectors.
- Remove and discard the push pins.

Courtesy of FORD MOTOR COMPANY
