Parking Assist Control Module (PAM) - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
If equipped, remove the subwoofer. Refer to: Subwoofer Speaker .

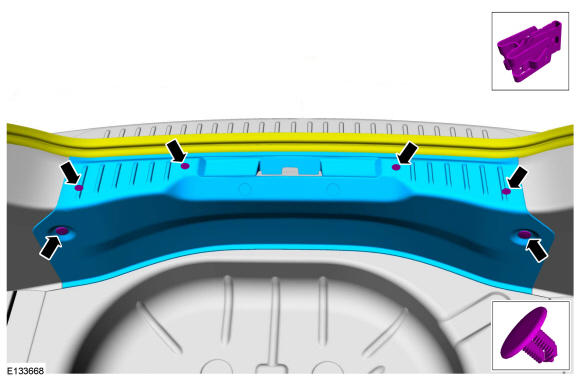

Remove the luggage compartment opening trim panel.
- Position the weatherstrip aside.
- Remove the push-pins and release the clips.
Courtesy of FORD MOTOR COMPANY

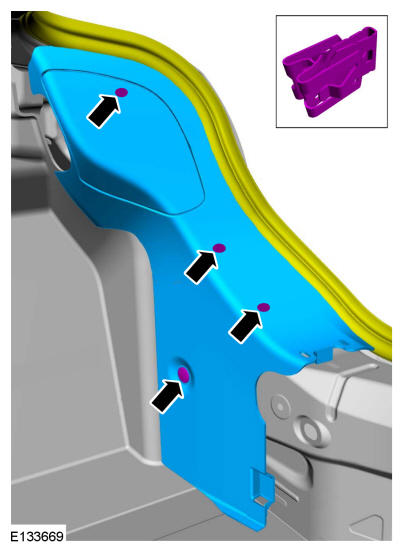

Remove the luggage compartment opening outer trim panel.
- Position the weatherstrip aside.
- Remove the push-pin and release the clips.
Courtesy of FORD MOTOR COMPANY

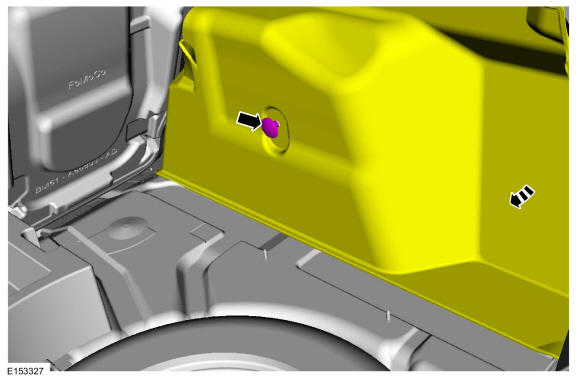

Remove the push-pin and position the loadspace trim panel aside.

Courtesy of FORD MOTOR COMPANY

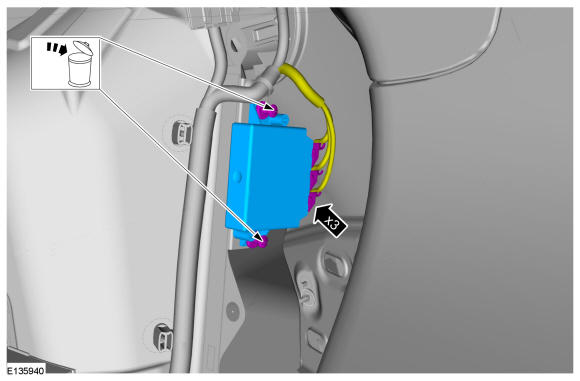

Remove the parking assist control module.
- Disconnect the parking assist control module electrical connectors.
- Remove and discard the push-pins.

Courtesy of FORD MOTOR COMPANY
