Parking Brake Switch: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Detach the clips and position the steering column cover aside.
GFD101389Courtesy of FORD MOTOR COMPANY

  1. 3.

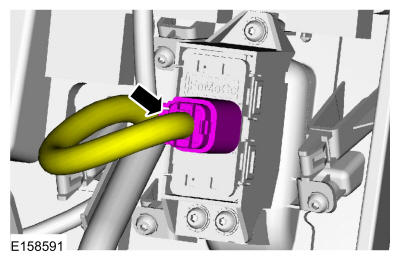

    Disconnect the parking brake switch electrical connector.
GFD101390Courtesy of FORD MOTOR COMPANY

  1. 4.

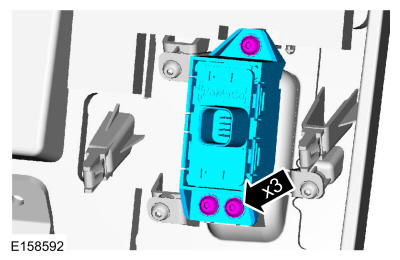

    Remove the screws and parking brake switch.
GFD101391Courtesy of FORD MOTOR COMPANY
