Transmission Controls - 6F35

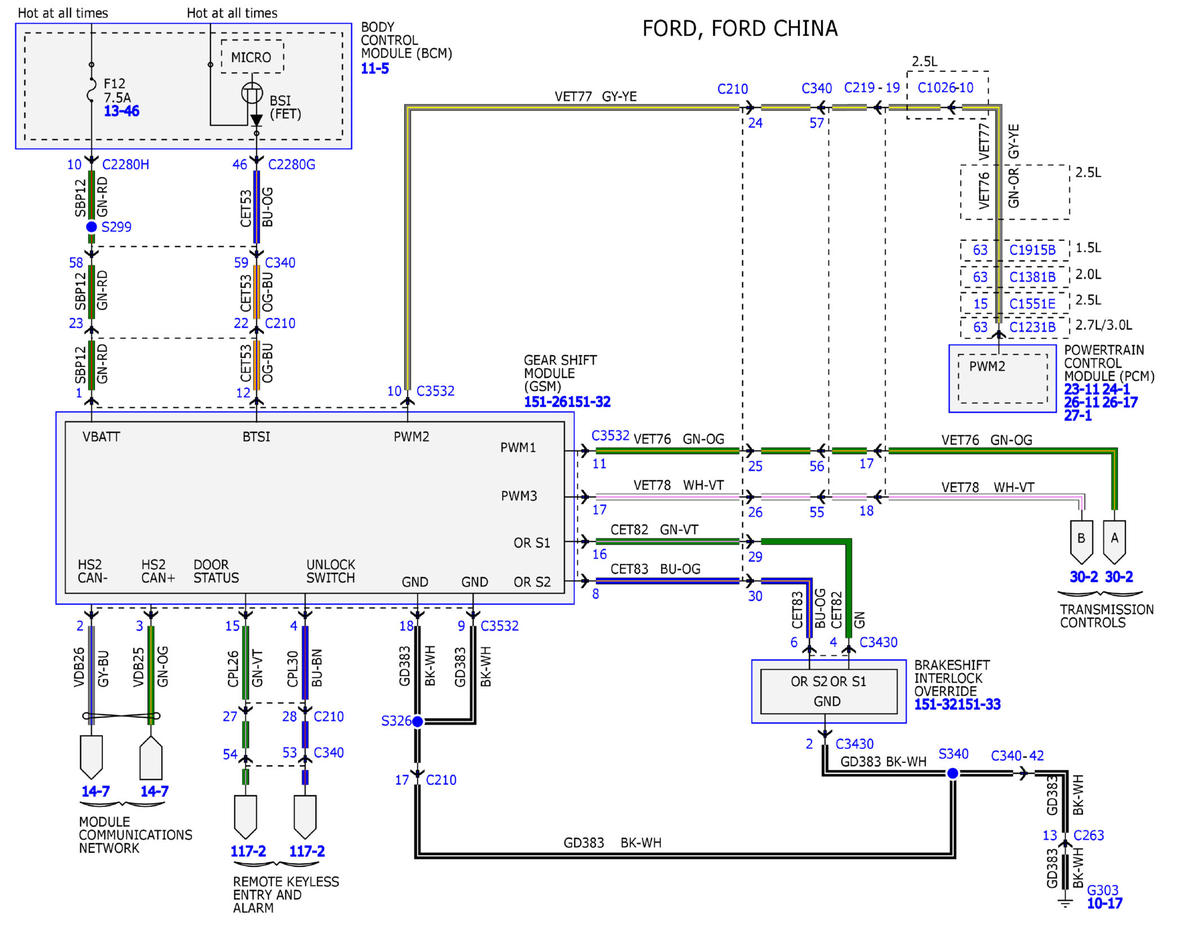

Fig 1: Transmission Controls - 6F35 Wiring Diagram (1 Of 7)
GFDW99070Courtesy of FORD MOTOR COMPANY

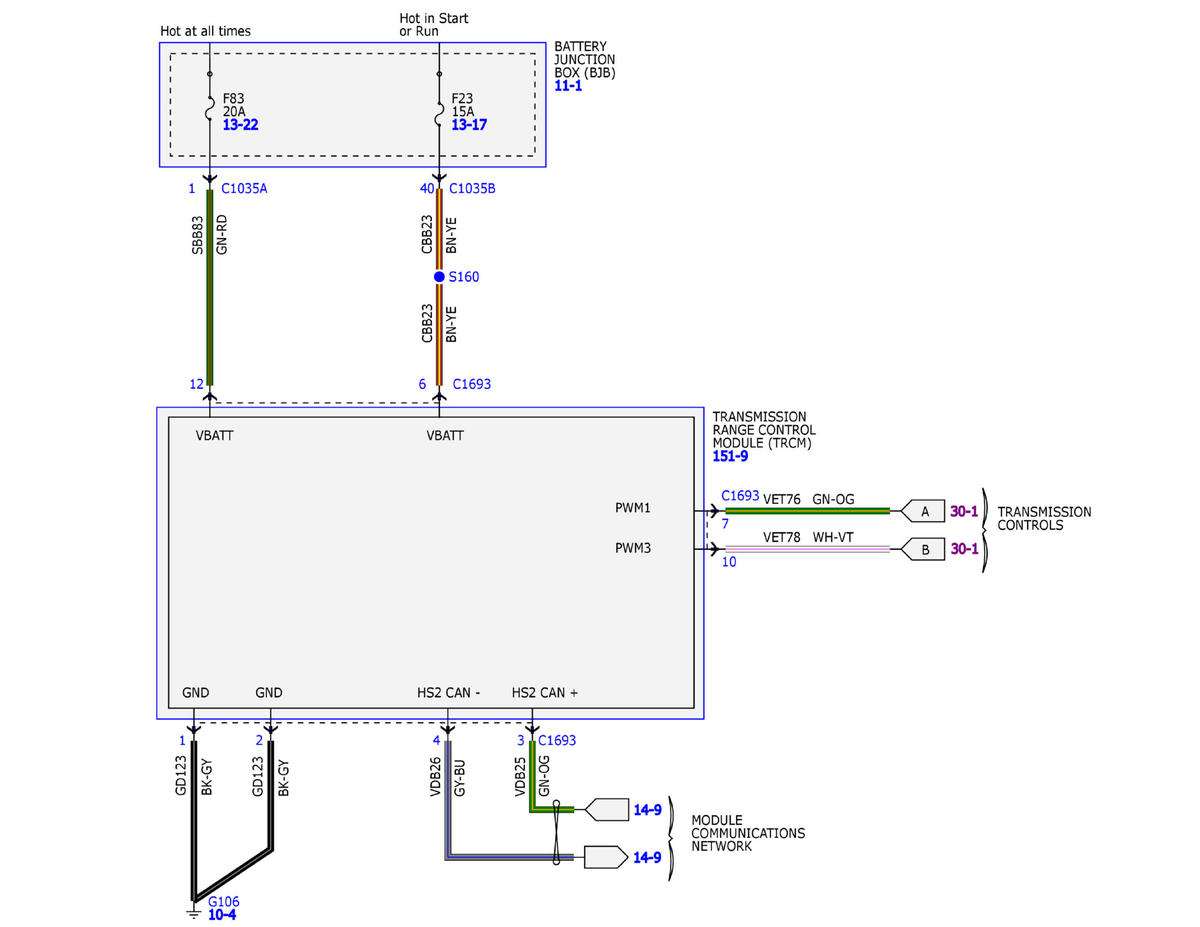

Fig 2: Transmission Controls - 6F35 Wiring Diagram (2 Of 7)
GFDW99071Courtesy of FORD MOTOR COMPANY

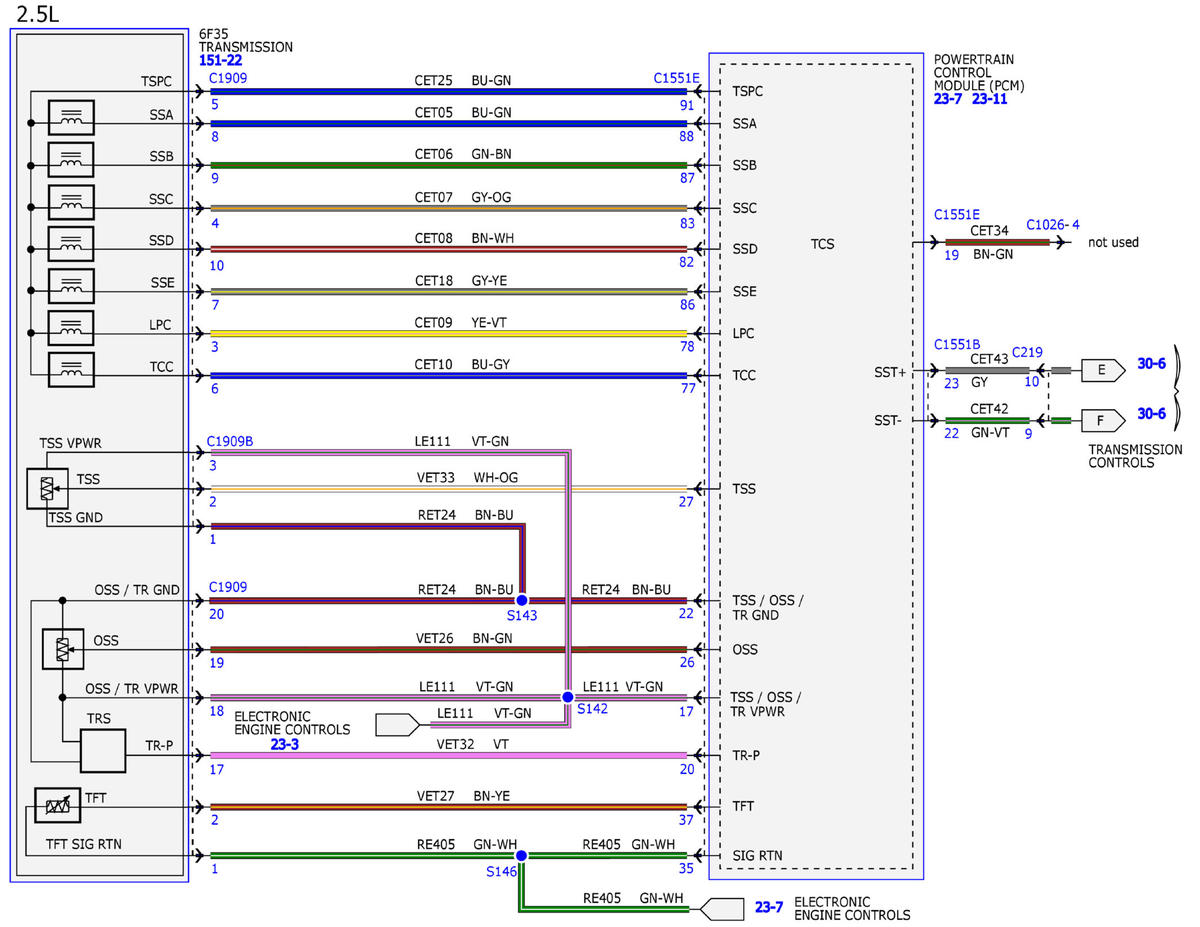

Fig 3: Transmission Controls - 6F35 Wiring Diagram (3 Of 7)
GFDW99072Courtesy of FORD MOTOR COMPANY

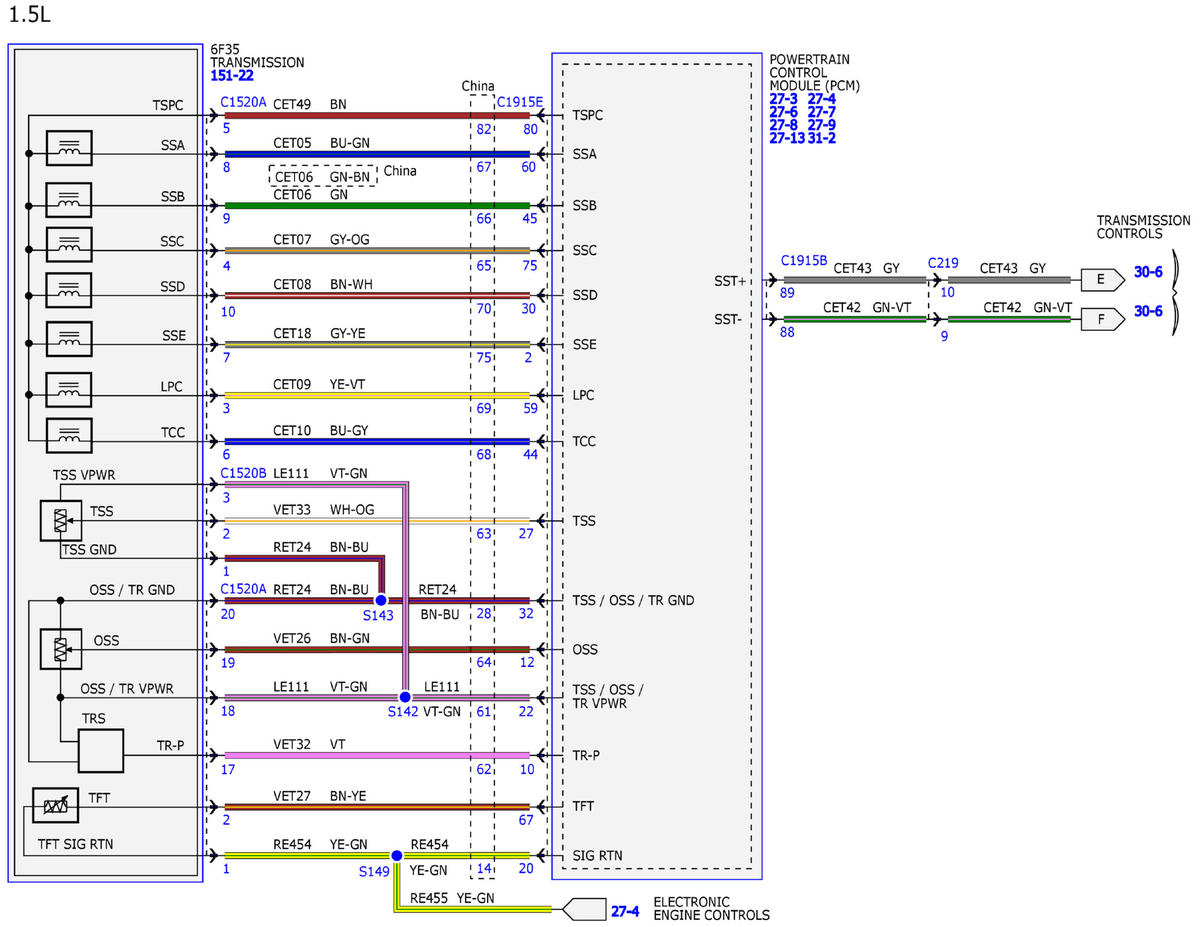

Fig 4: Transmission Controls - 6F35 Wiring Diagram (4 Of 7)
GFDW99073Courtesy of FORD MOTOR COMPANY

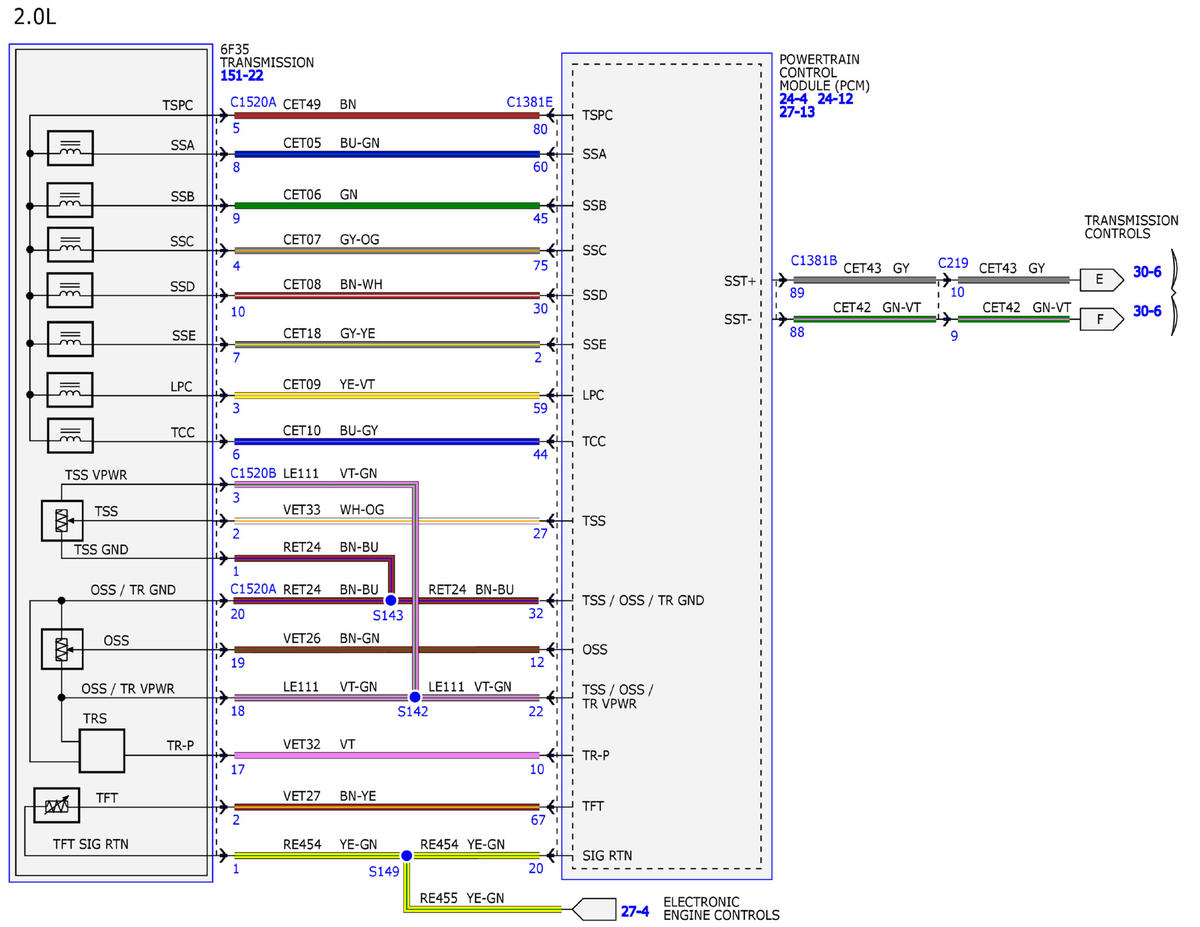

Fig 5: Transmission Controls - 6F35 Wiring Diagram (5 Of 7)
GFDW99074Courtesy of FORD MOTOR COMPANY

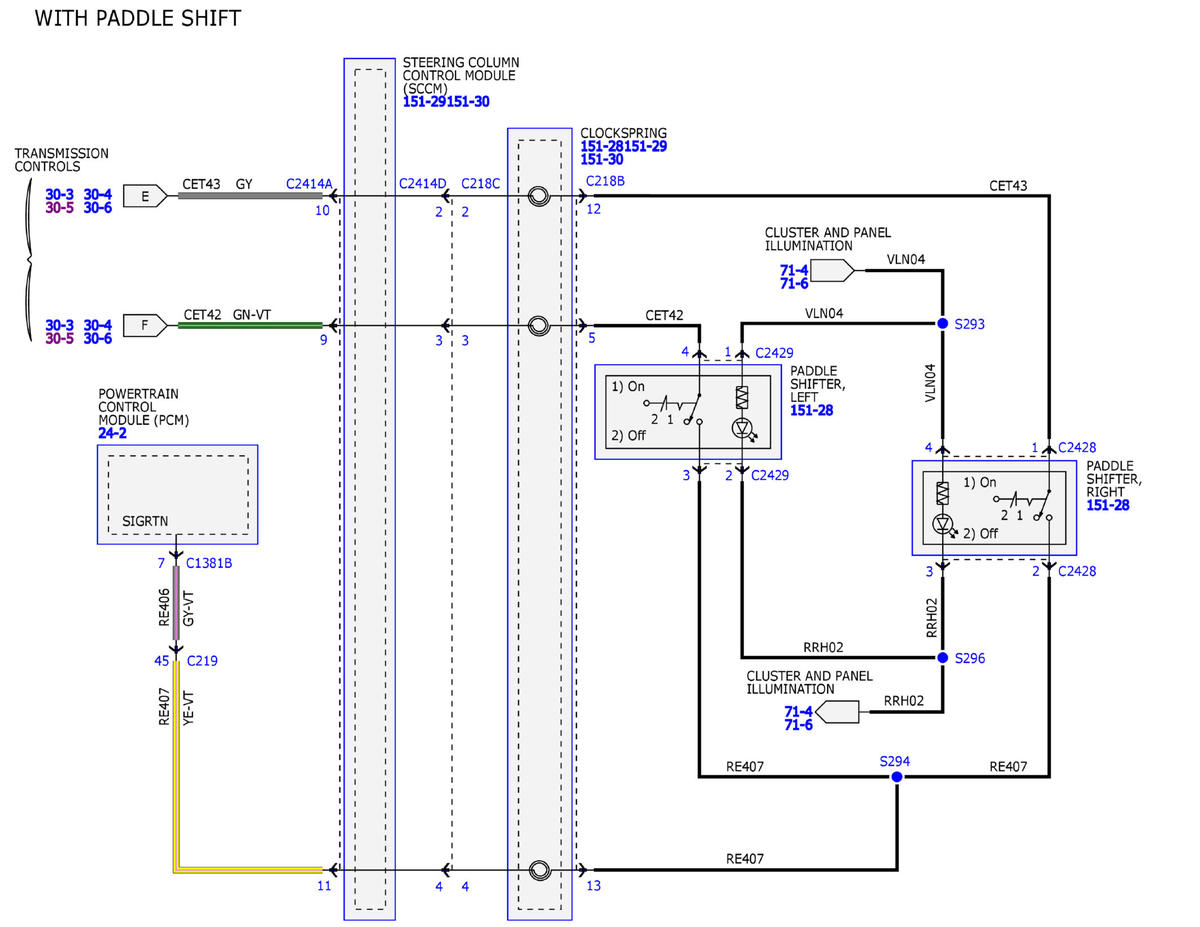

Fig 6: Transmission Controls - 6F35 Wiring Diagram (6 Of 7)
GFDW99075Courtesy of FORD MOTOR COMPANY

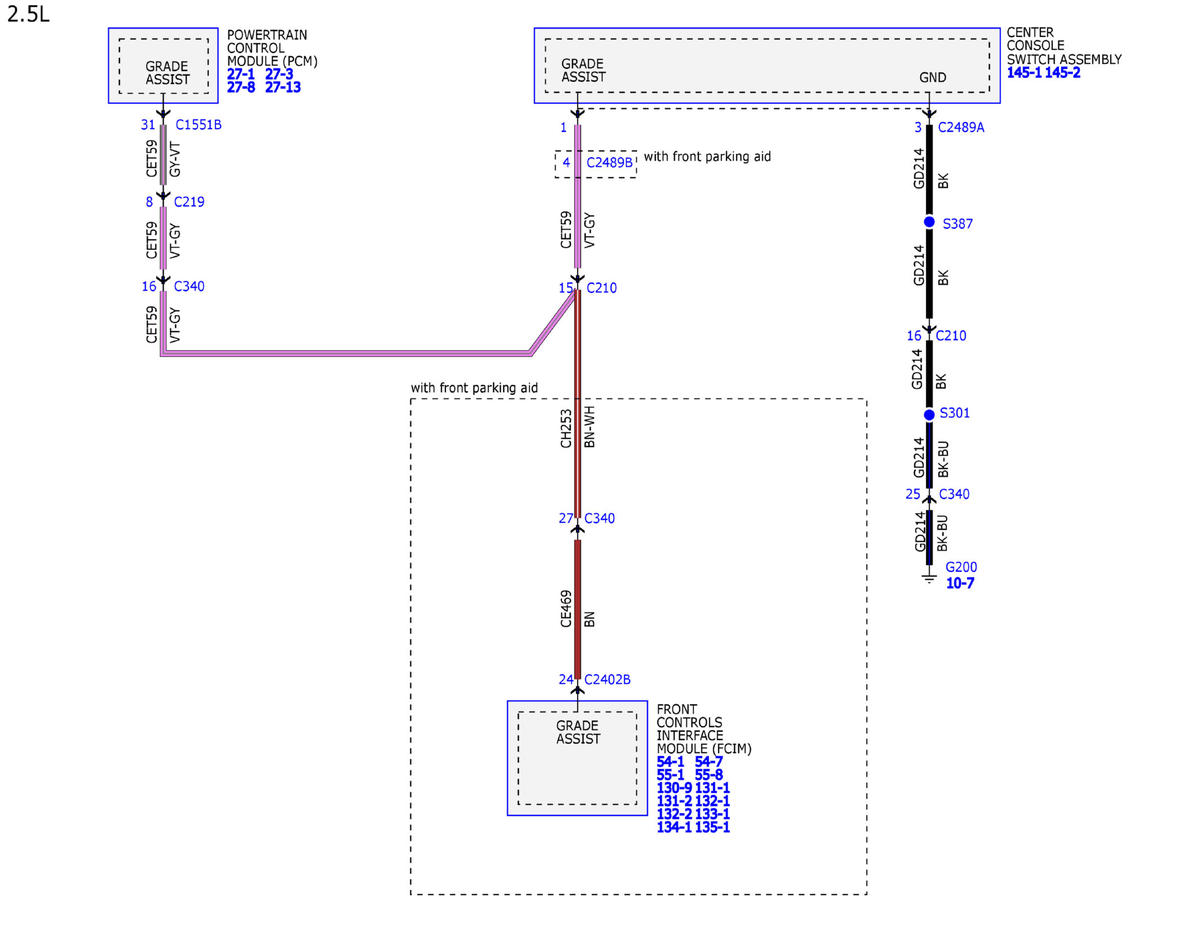

Fig 7: Transmission Controls - 6F35 Wiring Diagram (7 Of 7)
GFDW99076Courtesy of FORD MOTOR COMPANY
