Auto-Start-Stop System

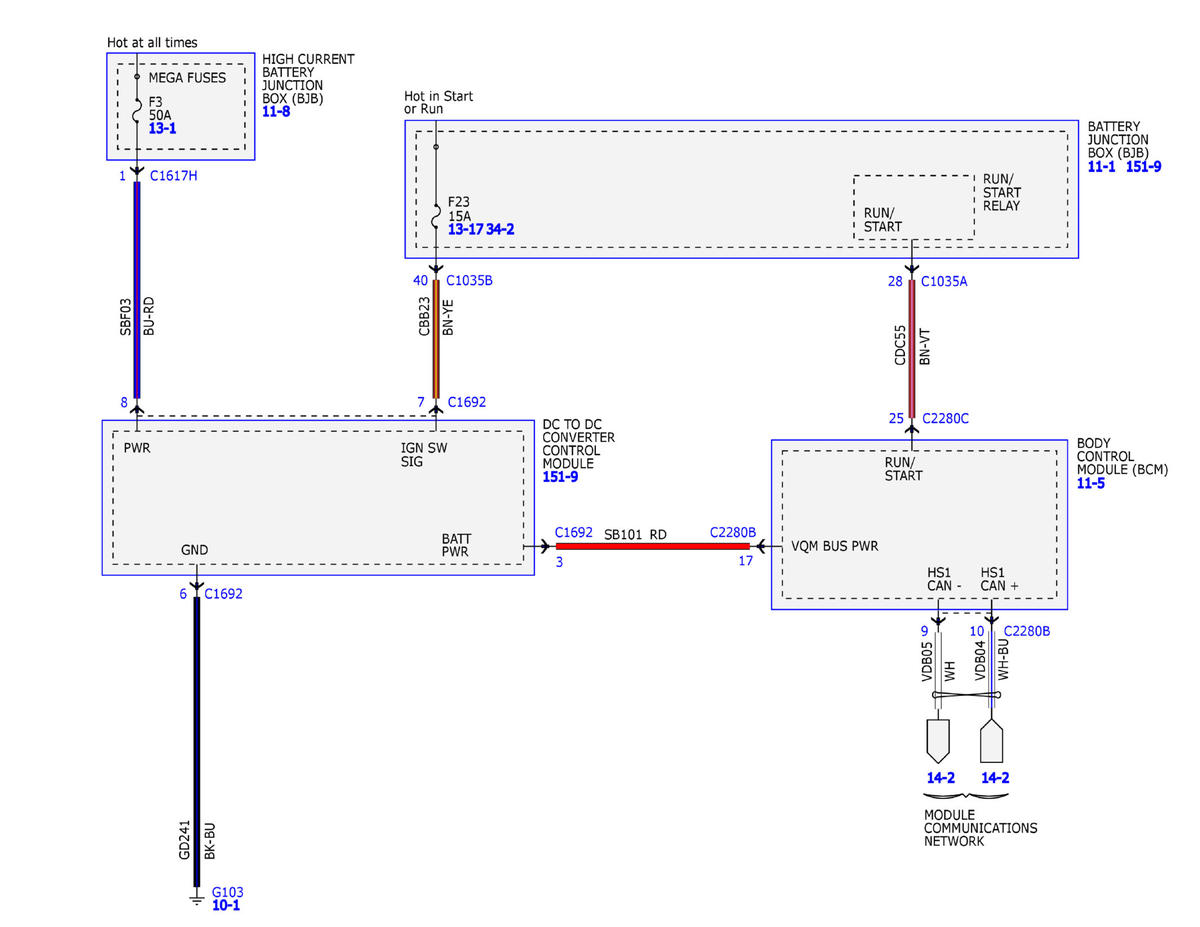

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 4)
GFDW98757Courtesy of FORD MOTOR COMPANY

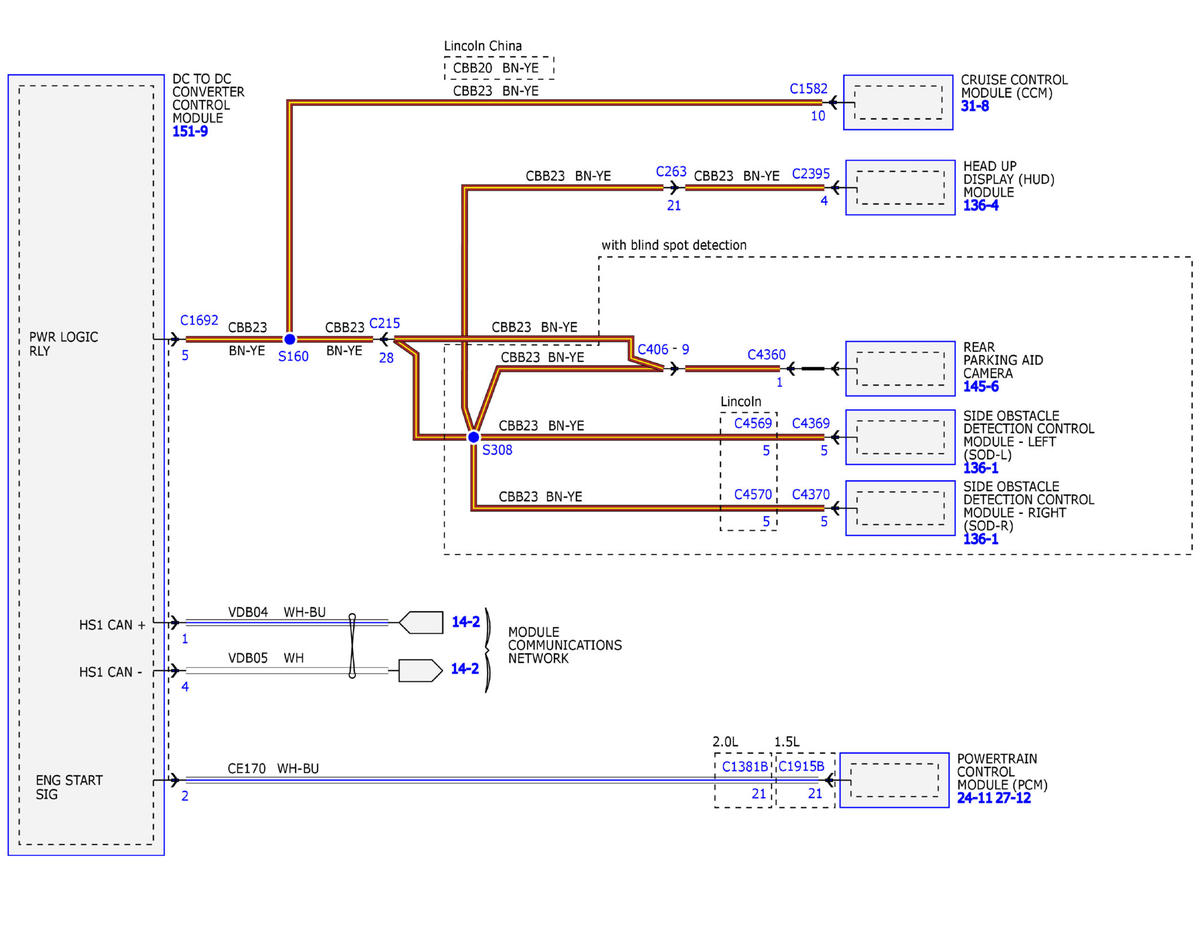

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 4)
GFDW98758Courtesy of FORD MOTOR COMPANY

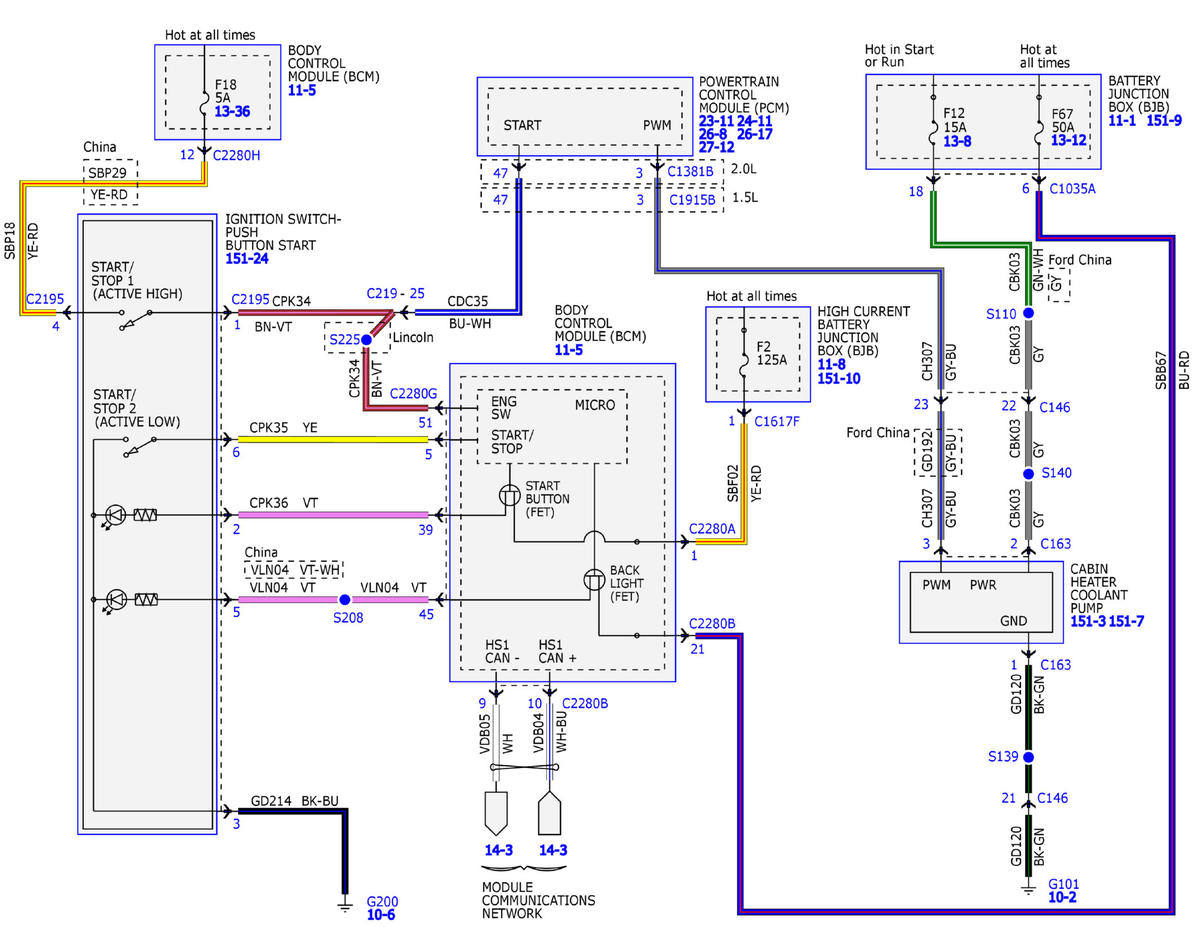

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 4)
GFDW98759Courtesy of FORD MOTOR COMPANY

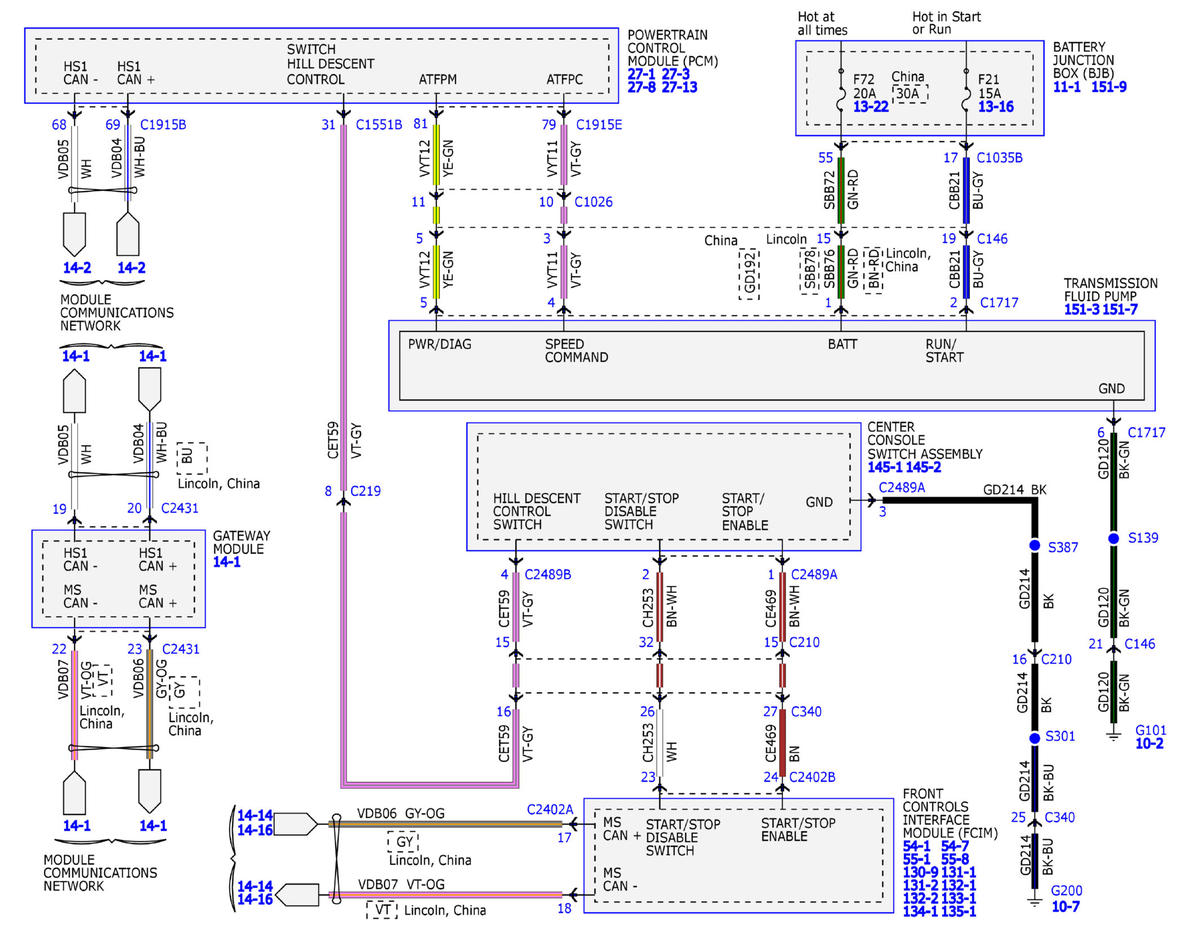

Fig 4: Auto-Start-Stop System Wiring Diagram (24 Of 4)
GFDW98760Courtesy of FORD MOTOR COMPANY
