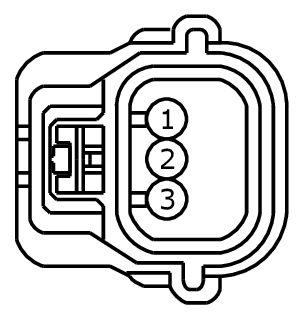

Connector End View C1607 - FRONT ACTIVE PARK ASSIST SENSOR LH
Connector:C1607
Description
FRONT ACTIVE PARK ASSIST SENSOR LH
Color
Harness
15K867
Base Part #
#N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Ford |
| 1 | LMP06 (VT-GY) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Lincoln |
| 2 | VMP20 (GY-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | Ford |
| 2 | VMP20 (GY-OG) | 18 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | Lincoln |
| 3 | RMP06 (YE-OG) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Lincoln |
| 3 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Ford |
| Available Pigtail Kits | |

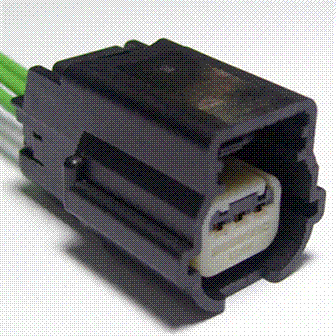

| Pigtail Kit Part Number WPT-1394 |
Service Part Number: AU2Z-14S411-AFB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |

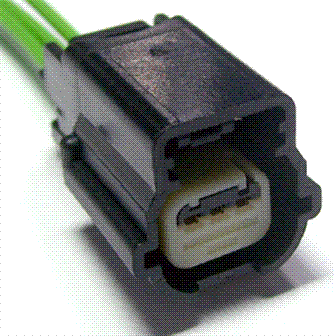

| Pigtail Kit Part Number WPT-1095 |
Service Part Number: AU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |
