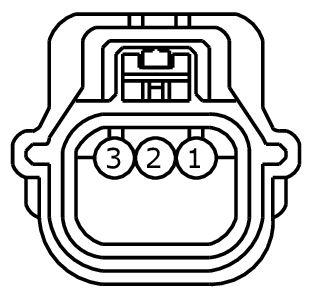

Connector End View C1430 - FRONT INNER PARKING AID SENSOR RH
Connector:C1430
Description
FRONT INNER PARKING AID SENSOR RH
Color
Harness
15K867
Base Part #
#N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | |
| 1 | LMP06 (VT-GY) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Lincoln |
| 2 | VMP12 (BU-GY) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | |
| 2 | VMP12 (BU-GY) | 18 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | Lincoln |
| 3 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | |
| 3 | RMP06 (YE-OG) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Lincoln |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1400 |
Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
| Pigtail Kit Part Number WPT-1315 |
Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
