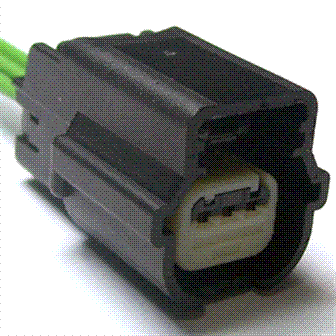

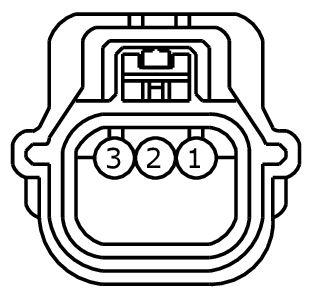

Connector End View C4421 - REAR ACTIVE PARK ASSIST SENSOR RH
Connector:C4421
Description
REAR ACTIVE PARK ASSIST SENSOR RH
Color
Harness
15K868
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | |
| 2 | VMP30 (BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE | |
| 3 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1400 |
Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
| Pigtail Kit Part Number WPT-1315 |
Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure |
