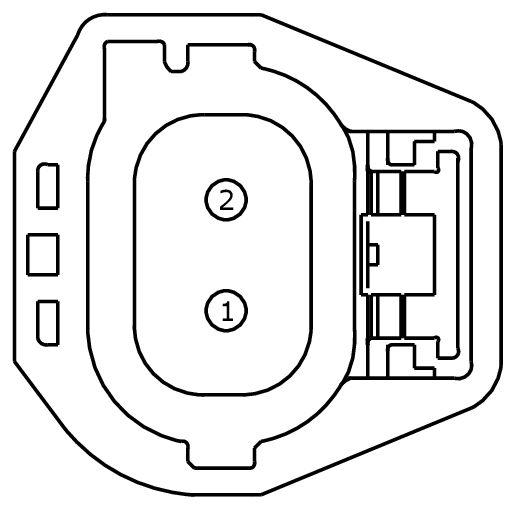

Connector End View C3050 - INLINE
InlineC3050
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 2B254
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCB16 (WH-VT) | 12 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCB16 (WH-VT) | 12 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses: Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
| Pigtail Kit Part Number WPT-1496 |
Service Part Number: DU2Z-14S411-KB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses: Glow Plug Motor - Fuel Filler Door Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
