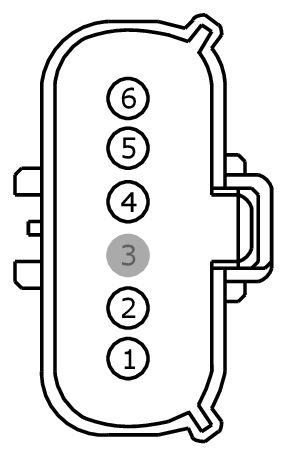

Connector End View C1717 - TRANSMISSION FLUID PUMP
Connector:C1717
Description
TRANSMISSION FLUID PUMP
Color
Harness
14A280
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB78 (BN-RD) | 14 | FUSE - 76 OR CIRCUIT BREAKER | Lincoln |
| 1 | SBB76 (GN-RD) | 14 | FUSE - 76 OR CIRCUIT BREAKER | |
| 2 | CBB21 (BU-GY) | 16 | FUSE - 21 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | VYT11 (VT-GY) | 20 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) | Ford China |
| 4 | VYT11 (VT-GY) | 18 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) | |
| 5 | VYT12 (YE-GN) | 20 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) | Ford China |
| 5 | VYT12 (YE-GN) | 18 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) | |
| 6 | GD120 (BK-GN) | 14 | GROUND - FENDER FRONT LEFT |

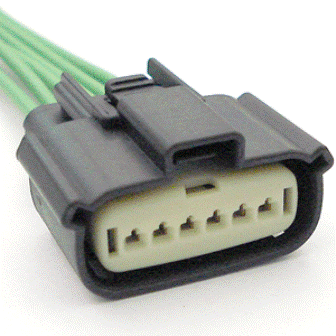

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline |
