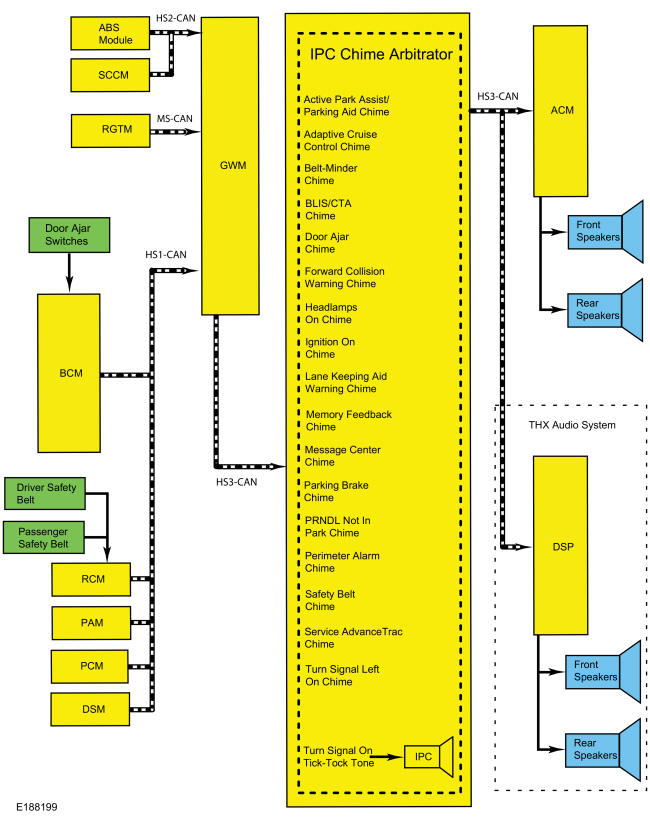

| 1 |
HS-CAN1 |
| 2 |
HS-CAN2 |
| 3 |
HS-CAN3 |
| 4 |
MS-CAN |
| 5 |
HS-CAN3 |
| 6 |
ABS module |
| 7 |
IPC |
| 8 |
PAM |
| 9 |
BCM |
| 10 |
Door ajar switches |
| 11 |
Driver safety belt |
| 12 |
Passenger safety belt |
| 13 |
RCM |
| 14 |
PCM |
| 15 |
GWM |
| 16 |
DSM |
| 17 |
RGTM |
| 18 |
Belt-Minder® chime |
| 19 |
Door ajar chime |
| 20 |
Headlamps on chime |
| 21 |
Parking brake chime |
| 22 |
Safety belt chime |
| 23 |
Message center chime |
| 24 |
Service AdvanceTrac chime |
| 25 |
Active park assist/parking aid chime |
| 26 |
Ignition-engine on chime |
| 27 |
Memory feedback chime |
| 28 |
Perimeter alarm chime |
| 29 |
Turn signal left on chime |
| 30 |
Adaptive cruise control chime |
| 31 |
BLIS®/CTA chime |
| 32 |
Forward collision warning chime |
| 33 |
Lane keeping aid warning chime |
| 34 |
PRNDL not in park chime |
| 35 |
IPC chime arbitrator |
| 36 |
Turn signal on tick-tock tone |
| 37 |
ACM |
| 38 |
Rear speakers |
| 39 |
Front speakers |
| 40 |
DSP |
| 41 |
Rear speakers |
| 42 |
Front speakers |
| 43 |
AM/FM/CD/SYNC touchscreen display |
| 44 |
SCCM |
