Parking Brake Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before Beginning Any Service Procedure, Refer To Safety Warnings In General Information. Failure To Follow This Instruction May Result In Serious Personal Injury.
Refer to: Health and Safety Precautions .

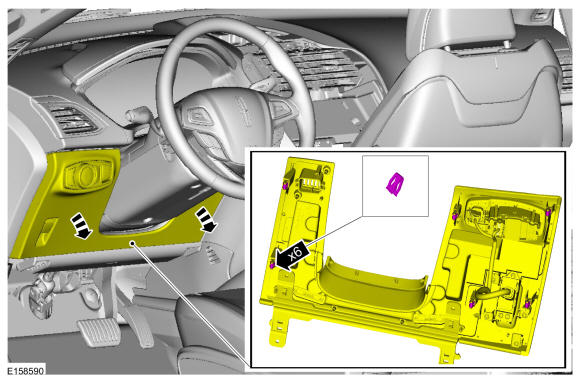

- Detach the clips and position the steering column cover aside.

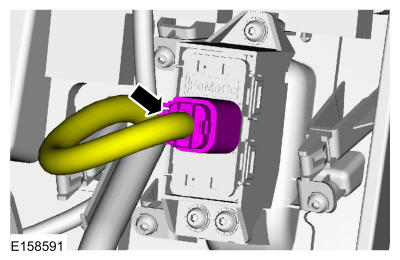

- Disconnect the parking brake switch electrical connector.

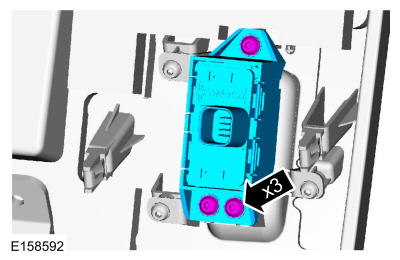

- Remove the screws and parking brake switch.
