Brake Vacuum Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

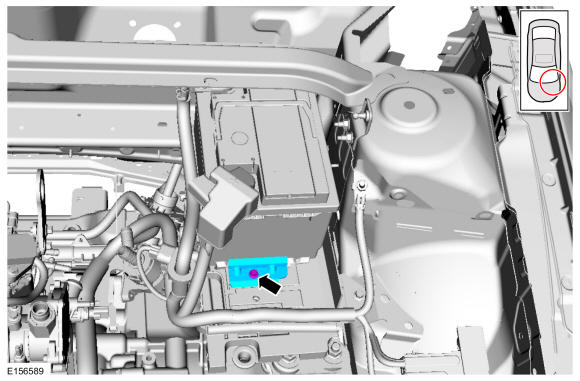

Remove the battery hold down bolt and plate.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

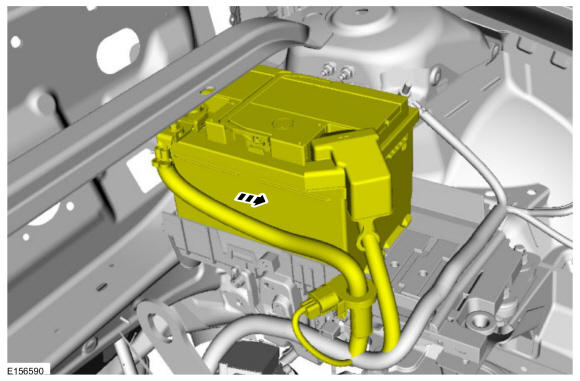

Position the battery forward.

Courtesy of FORD MOTOR COMPANY

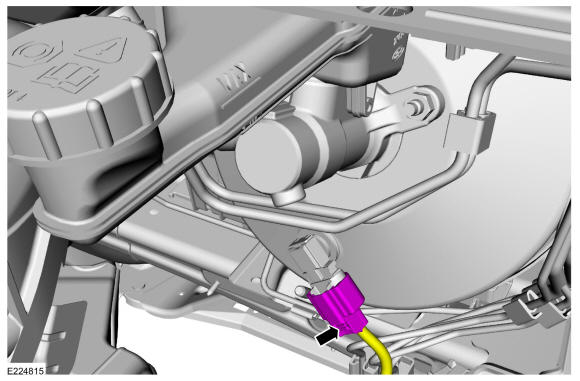

Disconnect the brake vacuum sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: When installing the brake vacuum sensor, make sure the sensor and electrical connector are not making contact with surrounding components or damage may occur.

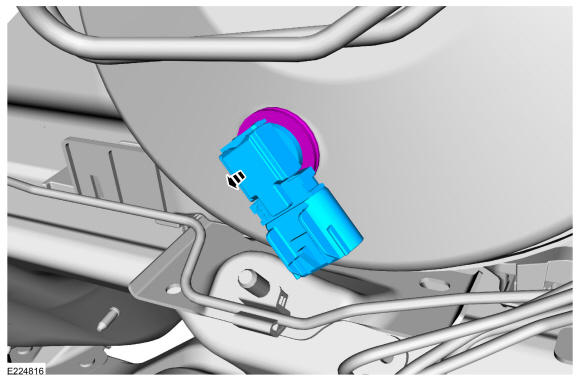

Remove the brake vacuum sensor.

Courtesy of FORD MOTOR COMPANY
