Brake Vacuum Pump - 3.0L EcoBoost: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the upper and lower air cleaner outlet pipe RH.Refer to: AIR CLEANER OUTLET PIPE RH .
Remove the air cleaner outlet pipe LH.Refer to: AIR CLEANER OUTLET PIPE LH ..
Loosen the clamp and position aside the CAC intake lower pipe RH.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

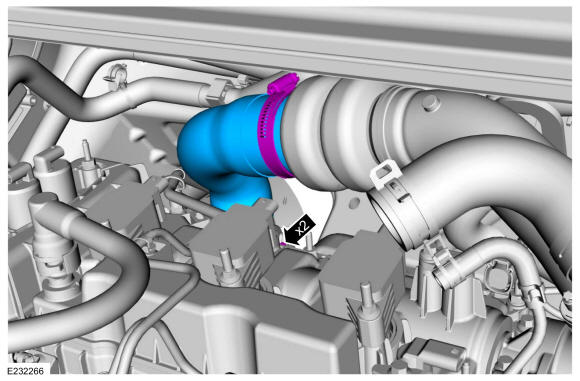

Loosen the clamps and remove the CAC upper intake pipe RH.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Disconnect the EVAP canister purge valve quick release coupling.Refer to: QUICK RELEASE COUPLING
2. Detach the retainer and position the EVAP canister purge valve tube aside.
Courtesy of FORD MOTOR COMPANY

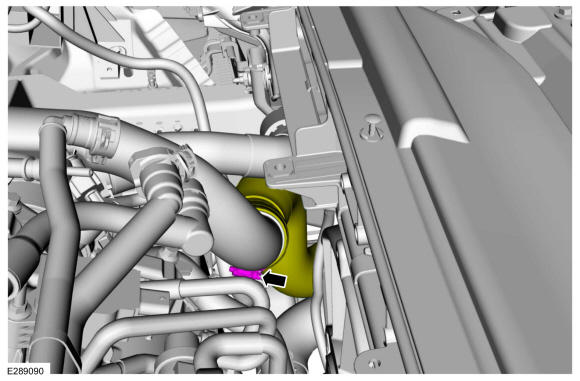

Detach the coolant hose from the starter motor bracket.

Courtesy of FORD MOTOR COMPANY
1. Remove the bolt.
  Torque: 71 lb.in (8 Nm)
2. Disconnect the bypass valve electrical connector and remove the CAC intake pipe RH.
Courtesy of FORD MOTOR COMPANY
Clean, inspect, and cover all open ports.

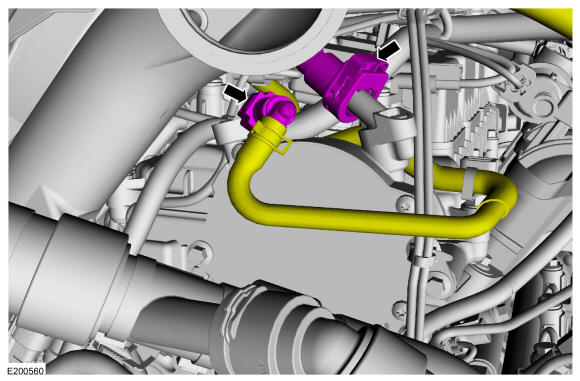

Disconnect the vacuum tubes.

Courtesy of FORD MOTOR COMPANY

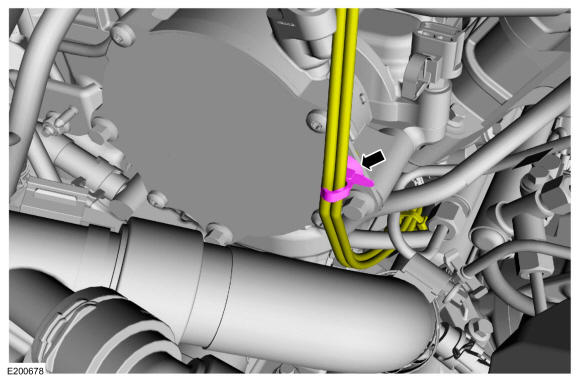

Detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

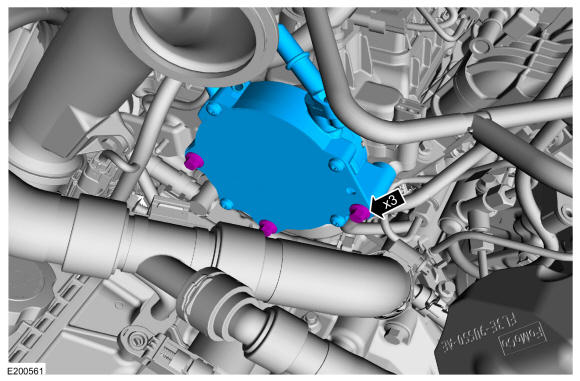

Remove the bolts and the vacuum pump.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
