Brake Vacuum Pump - 2.0L EcoBoost (184kW 250PS) - MI4: Installation

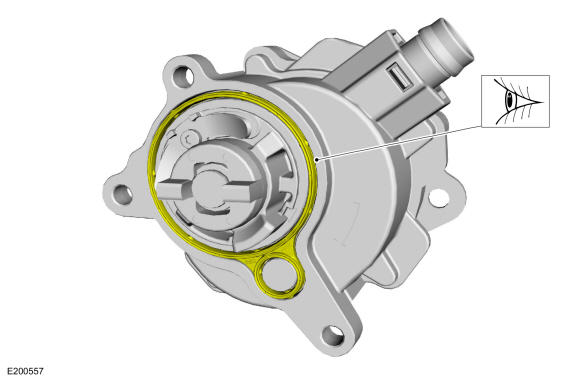

  1. Inspect the gasket and install a new gasket as necessary.
    GFD258627Courtesy of FORD MOTOR COMPANY
  2. NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

    To install, reverse the removal procedure.
