Rear Parking Aid Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

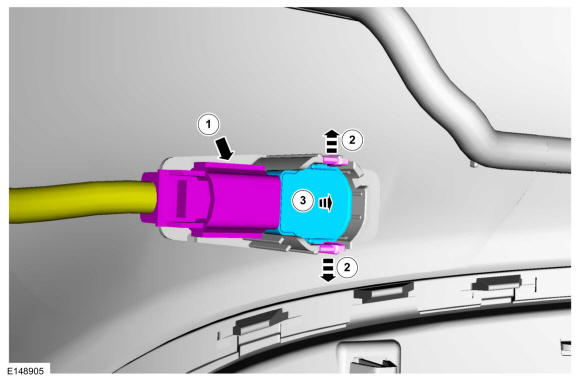

  2. NOTE: RH outer parking aid sensor shown, all others similar.

    Remove the rear parking aid sensor.

    1. Disconnect the rear parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the rear parking aid sensor from the bracket.

GFD262566Courtesy of FORD MOTOR COMPANY
