Front Parking Aid Sensor: Removal

All front parking aid sensors

1. Remove the front bumper cover. Refer to: Front Bumper Cover .

   Outer front parking aid sensors

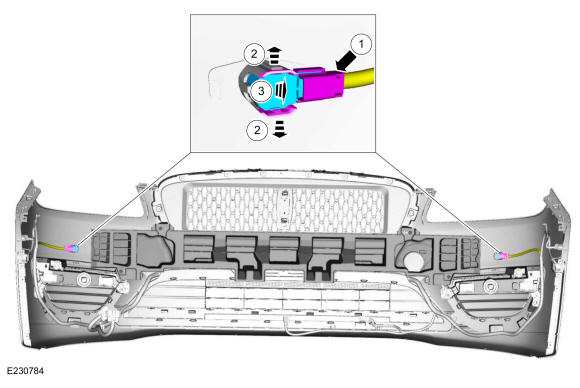

2. Remove the outer front parking aid sensor.
   1. Disconnect the outer front parking aid sensor electrical connector.
   2. Release the tabs.
   3. Remove the outer front parking aid sensor from the bracket.

   Courtesy of FORD MOTOR COMPANY

   Inner front parking aid sensors

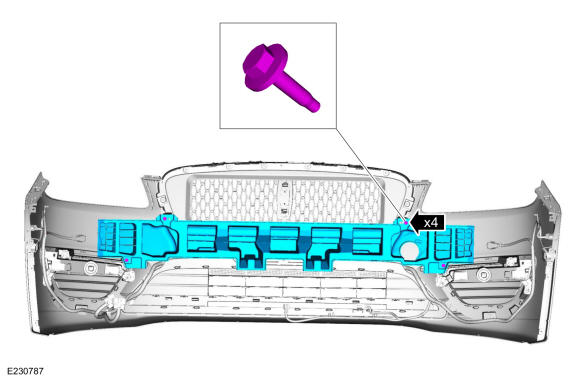

3. Remove the screws and the front bumper cover reinforcement.

   Courtesy of FORD MOTOR COMPANY

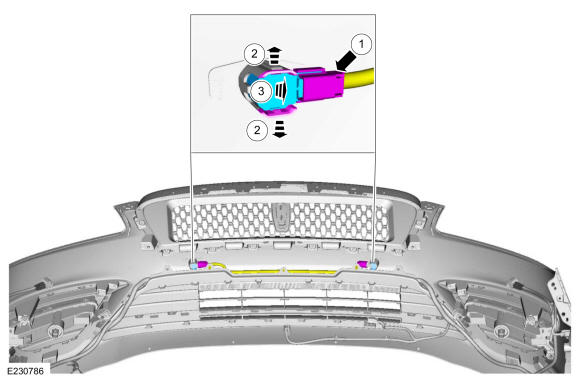

4. Remove the inner front parking aid sensor.
   1. Disconnect the inner front parking aid sensor electrical connector.
   2. Release the tabs.
   3. Remove the inner front parking aid sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
