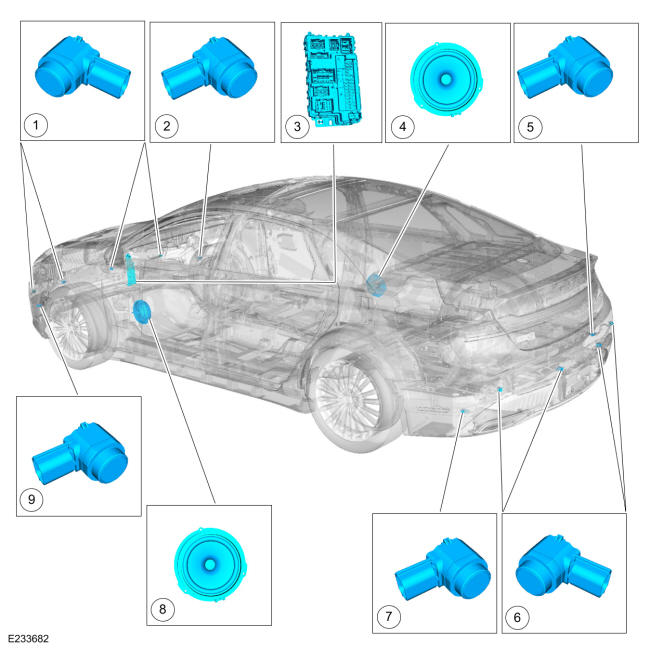

Component Location, Parking Aid - Audible
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | Right front active parking aid sensor |
| 3 | PAM (integral to the BCM |
| 4 | Rear speakers (part of audio system) |
| 5 | Right rear active parking aid sensor |
| 6 | Rear parking aid sensors |
| 7 | Left rear active parking aid sensor |
| 8 | Front speakers (part of audio system) |
| 9 | Left front active parking aid sensor |
