Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the retainers and remove the front underbody splash shield.
    GFD260700Courtesy of FORD MOTOR COMPANY

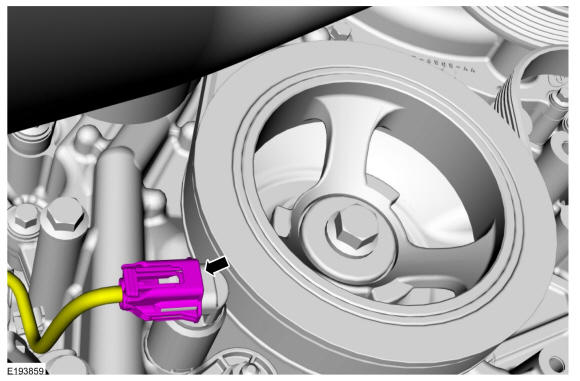

  3. Disconnect the oil pressure control solenoid electrical connector.
    GFD259717Courtesy of FORD MOTOR COMPANY

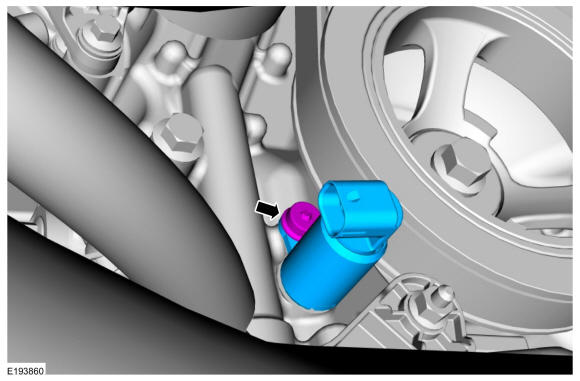

  4. Remove the retainer and the oil pressure control solenoid.

    Torque: 97 lb.in (11 Nm)

GFD259718Courtesy of FORD MOTOR COMPANY
