Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the coolant outlet connector. Refer to: Engine Cooling - 3.0L Ecoboost (Except Hybrid) .
-
NOTE: Note the position of the components before removal.

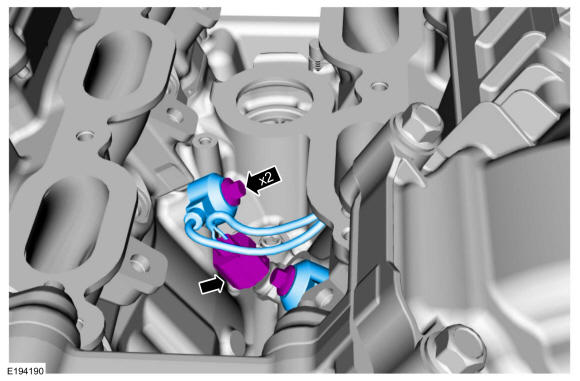

Disconnect the ECT sensor connector, remove retainers and the KS.
Torque: 97 lb.in (11 Nm)
