Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different variant/trim than selected.

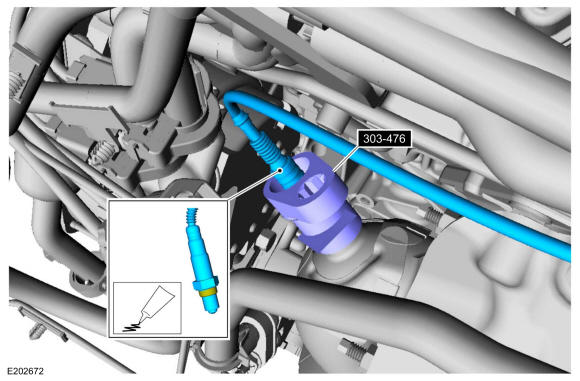

Left hand Heated oxygen sensor

  1. Apply anti-seize to thread of sensor, using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2

    Torque: 35 lb.ft (48 Nm)

    GFD260770Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.

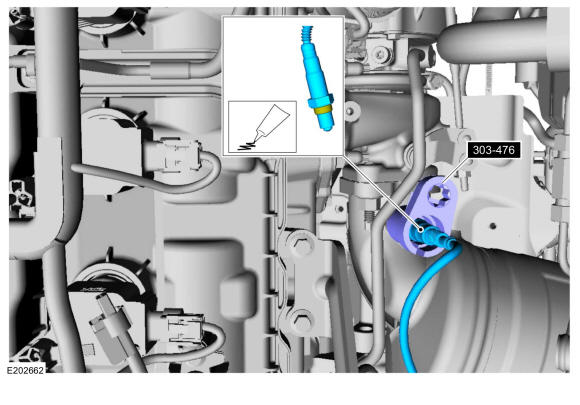

    Right hand Heated oxygen sensor

  3. Apply anti-seize to thread of sensor, using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2

    Torque: 35 lb.ft (48 Nm)

    GFD260771Courtesy of FORD MOTOR COMPANY
  4. To install, reverse the removal procedure.
