Transmission Range Control Module (TRCM): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the TRCM and tighten the bolts.
Torque: 133 lb.in (15 Nm)
- Attach the selector lever cable to the selector lever cable bracket and install the retaining clip bolt.
Torque
: 62 lb.in (7 Nm)

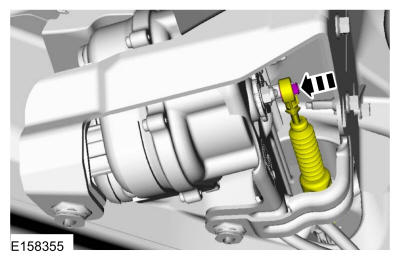

- Connect the selector lever cable to the TRCM lever.
- Attach the wiring harness retainer and connect the TRCM electrical connector.
- Install the RH fender splash shield. REFER to: Fender Splash Shield .
- Adjust the selector lever cable. REFER to: Selector Lever Cable Adjustment (307-05 Automatic Transmission External Controls - Vehicles With: Automatic Transmission - HF35). REFER to: Selector Lever Cable Adjustment (307-05 Automatic Transmission External Controls - 6-Speed Automatic Transmission - 6F50). REFER to: Selector Lever Cable Adjustment (307-05 Automatic Transmission External Controls - 6-Speed Automatic Transmission - 6F35).
