Selector Lever Cable: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Health and Safety Precautions .
  2. With the vehicle in N, position it on hoist. Refer to: Jacking and Lifting - Overview .
  3. Remove the air cleaner outlet pipe. Refer to: Air Cleaner .
  4. Remove the battery tray. Refer to: Battery Tray .

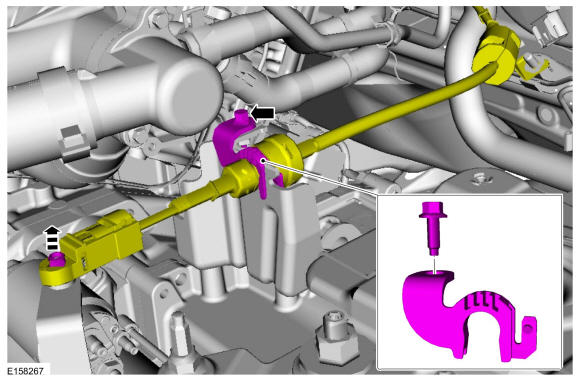

  5. Disconnect the selector lever cable from the transmission manual lever and the bracket.

    • Remove the selector lever cable bracket bolt.

    • Disengage the selector lever cable holding clip.

    • Disconnect the selector lever cable.

    GFD262003Courtesy of FORD MOTOR COMPANY
  6. Remove the nut and disconnect the selector lever cable.
    GFD262028Courtesy of FORD MOTOR COMPANY
  7. Disconnect the selector lever cable retainer.
    GFD262029Courtesy of FORD MOTOR COMPANY
  8. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
  9. NOTE: Release the locking tab on the TRCM electrical connector before disconnecting.

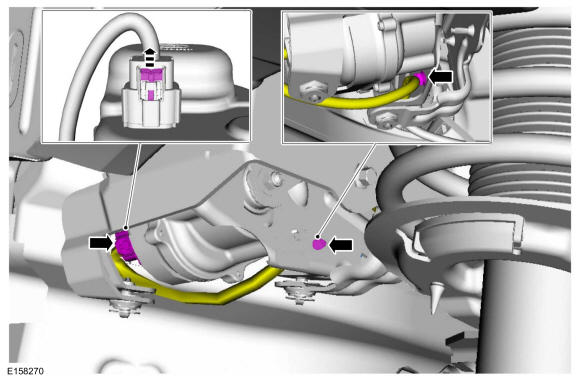

    Detach the wiring harness retainer and disconnect the TRCM electrical connector.

    GFD262006Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and the TRCM.
    GFD262007Courtesy of FORD MOTOR COMPANY

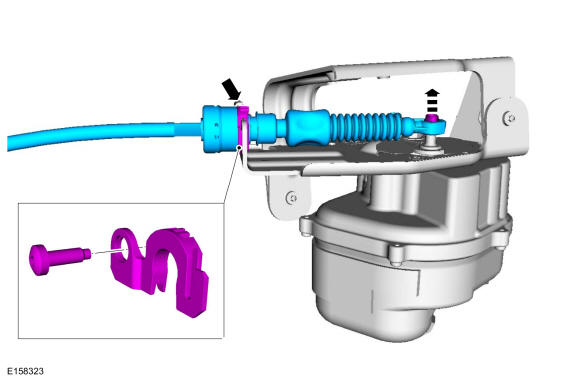

  11. Remove the bolt, disconnect the cable from the routing clip and the TRCM lever and remove the selector lever cable.
GFD262008Courtesy of FORD MOTOR COMPANY
