Selector Lever Cable: Installation

WARNING: This page is about a different variant/trim than selected.

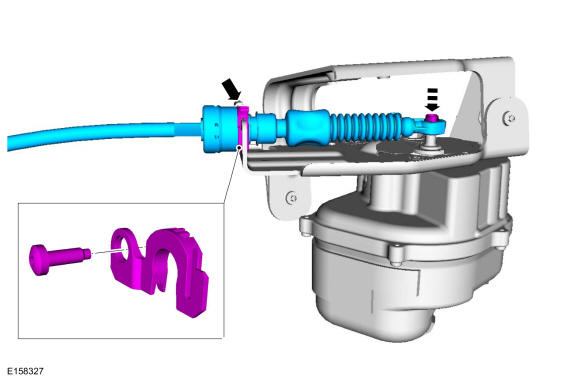

  1. Position the selector lever cable.

    • Connect the cable to the TRCM lever and the routing clip and install the selector cable retainer bolt.

      Torque: 62 lb.in (7 Nm)

    GFD262009Courtesy of FORD MOTOR COMPANY

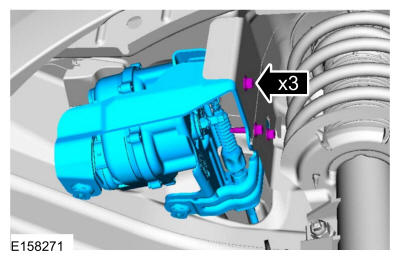

  2. Install the TRCM and the bolts.

    Torque: 133 lb.in (15 Nm)

    GFD262007Courtesy of FORD MOTOR COMPANY

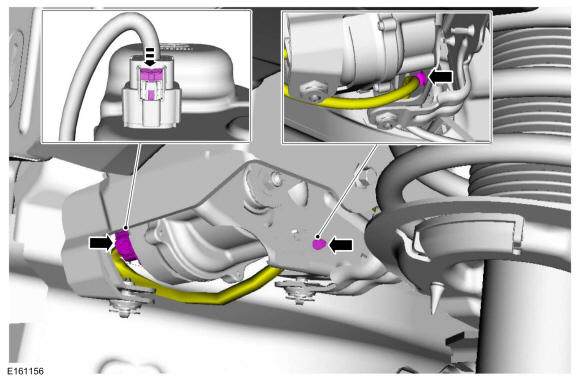

  3. Attach the wiring harness retainer and connect the TRCM electrical connector.
    GFD262010Courtesy of FORD MOTOR COMPANY
  4. Install the RH fender splash shield. Refer to: Fender Splash Shield .

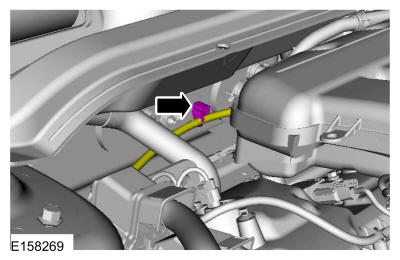

  5. Attach the selector lever cable retainer.
    GFD262029Courtesy of FORD MOTOR COMPANY

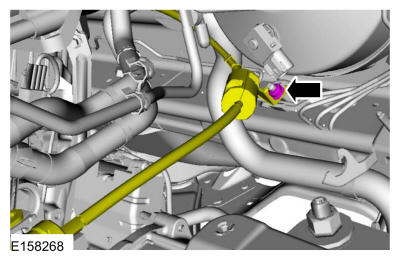

  6. Install the selector lever cable retainer nut.

    Torque: 80 lb.in (9 Nm)

    GFD262028Courtesy of FORD MOTOR COMPANY
    1. Move the slide to the left.
    2. While holding the slide, position the adjuster lock upward.
    GFD262011Courtesy of FORD MOTOR COMPANY
  8. Install the battery tray. Refer to: Battery Tray .
  9. Using the diagnostic scan tool select the cable adjustment mode.
  10. NOTE: The D must be illuminated on the GSM display.

    1. Press D on the GSM.

    GFD262012Courtesy of FORD MOTOR COMPANY
  11. NOTE: Verify D is illuminated on the IPC.

    1. Rotate the manual control lever clockwise until it stops.
    2. Rotate the manual control lever counterclockwise one detent.

    GFD262013Courtesy of FORD MOTOR COMPANY

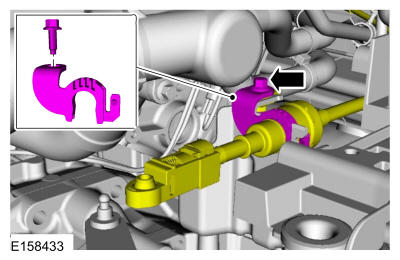

  12. Attach the selector lever cable to the bracket and install the selector cable retainer bolt.

    Torque: 62 lb.in (7 Nm)

    GFD262014Courtesy of FORD MOTOR COMPANY
  13. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

    Connect the selector lever cable to the manual control lever.

    GFD262026Courtesy of FORD MOTOR COMPANY
  14. NOTE: After locking the adjuster, pull back on the selector lever cable end to make sure it is securely installed.

    While holding slide press the adjuster lock downward.

    GFD262027Courtesy of FORD MOTOR COMPANY
  15. Press P on the GSM.
    GFD262017Courtesy of FORD MOTOR COMPANY
  16. Clear the DTCs.
  17. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
  18. Check for DTCs.
  19. Disconnect the scan tool.
  20. Install the air cleaner outlet pipe. Refer to: Air Cleaner .
  21. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
