Gearshift Module (GSM): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) (415-00B).

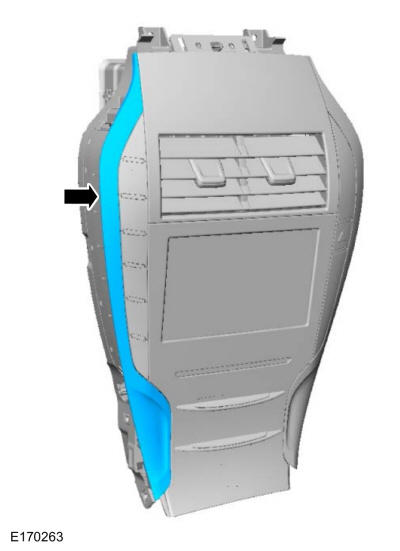

  2. Remove the trim panel.
    GFD262001Courtesy of FORD MOTOR COMPANY

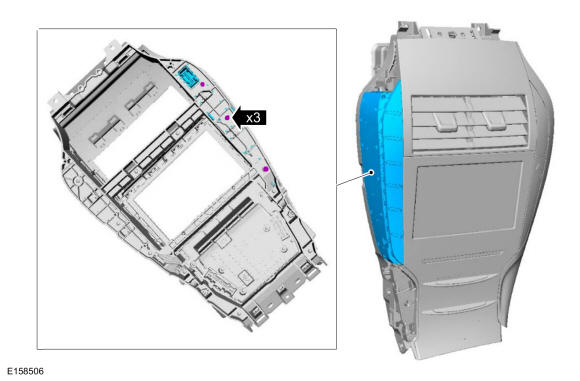

  3. Remove the screws and the GSM.
GFD262002Courtesy of FORD MOTOR COMPANY
