Brake Shift Interlock Override Switch: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. REFER to: Floor Console .

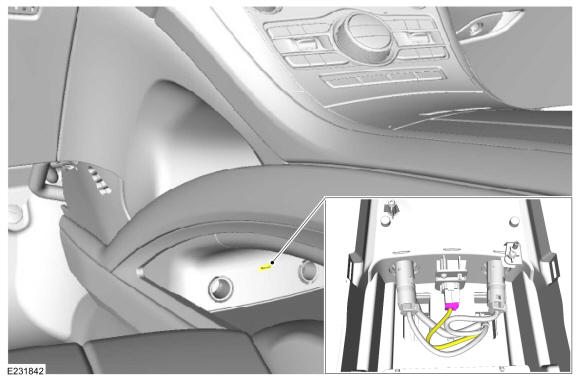

  2. Disconnect the brake shift interlock actuator electrical connector.
    GFD261998Courtesy of FORD MOTOR COMPANY

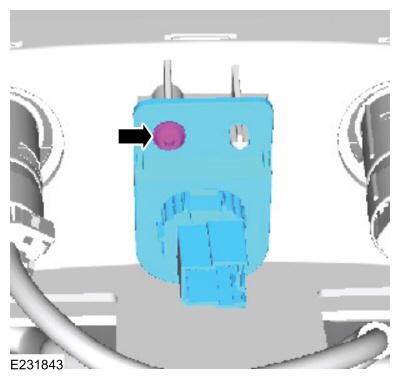

  3. Remove the screw and the brake shift interlock actuator.

    Torque: 44 lb.in (5 Nm)

GFD261999Courtesy of FORD MOTOR COMPANY
