Transmission Fluid Warmer: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the cooler bypass valve. Refer to: Cooler Bypass Valve .

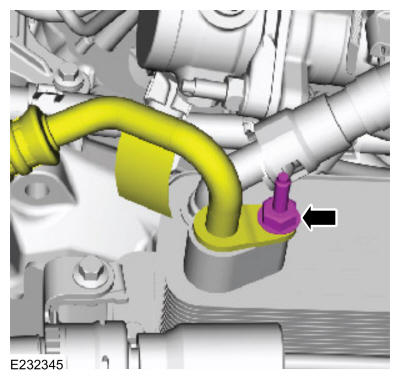

- Remove the studbolt and position the transmission-to-transmission fluid warmer tube aside.

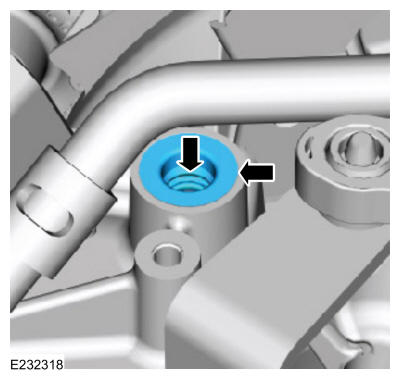

- Inspect the transmission to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission. If the transmission fluid tube seal or backing ring are stuck in the transmission, remove the seal and backing ring.

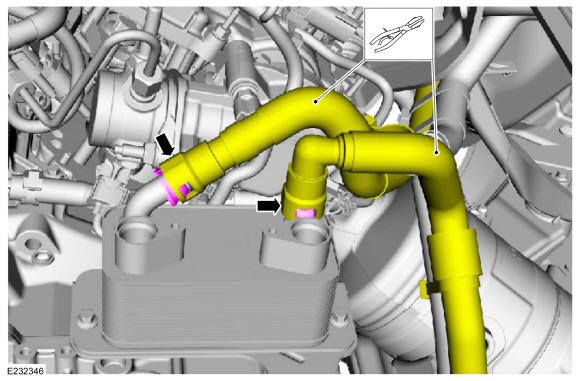

- Clamp the coolant hoses and disconnect the quick connect couplings. Use the General Equipment: Hose Clamp(s)

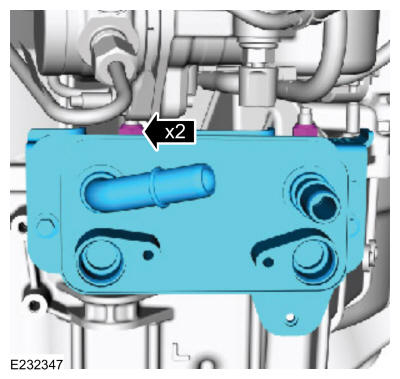

- Remove the nuts and the transmission fluid warmer.
