Transmission Fluid Warmer: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the transmission fluid warmer and the nuts.
Torque: 18 lb.ft (25 Nm)
- Connect the quick connect couplings and remove the clamps. Use the General Equipment: Hose Clamp(s)

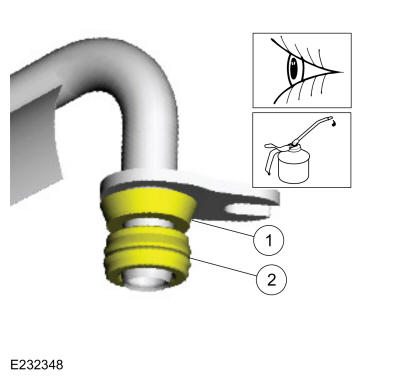

- Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.
- Backing ring (7J324)
- Seal (7D285)
- Position the transmission-to-transmission fluid warmer tube and install the studbolt.
Torque: 80 lb.in (9 Nm)
- Install the cooler bypass valve. Refer to: Cooler Bypass Valve .
