Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.

Position the transmission fluid auxiliary cooler tube assembly.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler. Refer to: Transmission Fluid Cooler .
Install the cooler bypass valve-to-transmission fluid cooler tube assembly tube and the nut.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Position the selector lever cable, install the bolts and connect the selector lever cable to the transmission manual lever.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the cooler bypass valve-to-transmission fluid cooler tube assembly tube fitting.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

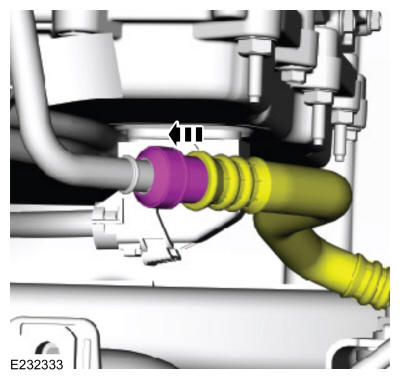

Connect the cooler bypass valve-to-transmission fluid cooler tube assembly tube quick connect coupling.

Courtesy of FORD MOTOR COMPANY
Install the cooler bypass valve-to-transmission fluid cooler tube assembly tube quick connect coupling secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler tube assembly-to-cooler bypass valve tube.

Courtesy of FORD MOTOR COMPANY

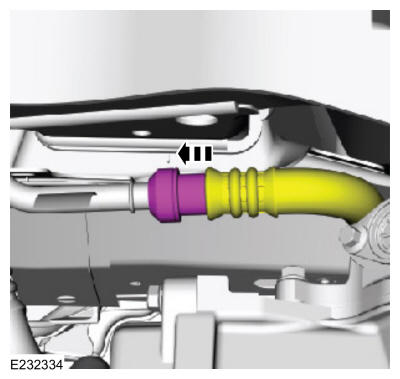

Connect the transmission fluid cooler tube assembly-to-cooler bypass valve tube quick connect coupling.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler assembly-to-cooler bypass valve tube quick connect coupling secondary latch.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the fasteners.

Courtesy of FORD MOTOR COMPANY
Tighten the transmission fluid cooler-to-cooler bypass valve tube fitting.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

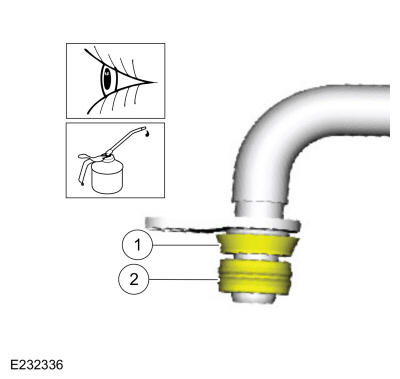

Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
Courtesy of FORD MOTOR COMPANY
Install the cooler bypass valve-to-transmission tube.
1. Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
2. Install the studbolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid warmer-to-cooler bypass valve tube.
1. Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
2. Install the studbolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the air cleaner at this time.

Install the battery tray. Refer to: Battery Tray .
Inspect the transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
Courtesy of FORD MOTOR COMPANY
Install the transmission-to-transmission warmer tube, the bolt and the studbolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose standoff to the transmission fluid warmer tube studbolt.

Courtesy of FORD MOTOR COMPANY
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
Remove the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
