Cooler Bypass Valve: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Remove the battery tray. Refer to: Battery Tray .

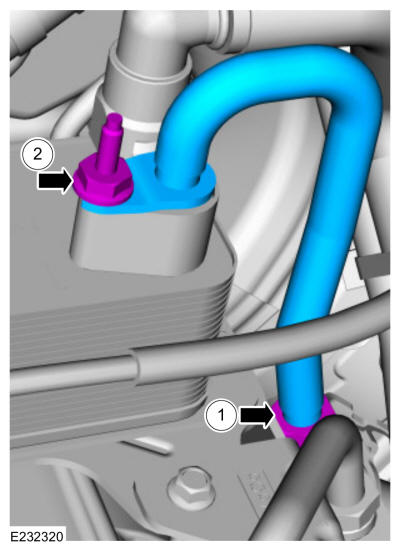

- Remove the transmission fluid warmer-to-cooler bypass valve tube.
- Completely loosen the fitting.
- Remove the studbolt and the tube.

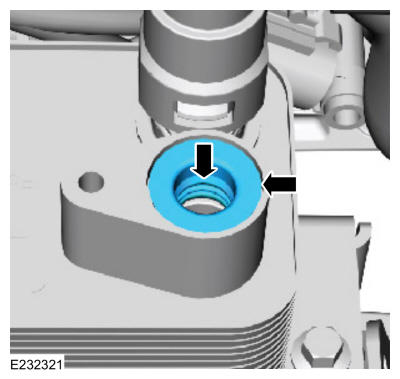

- Inspect the transmission fluid warmer to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission fluid warmer. If the transmission fluid tube seal or backing ring are stuck in the transmission fluid warmer, remove the seal and backing ring.

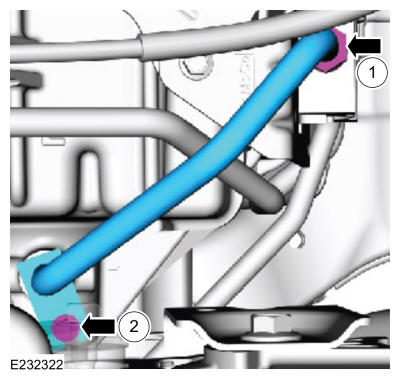

- Remove the cooler bypass valve-to-transmission tube.
- Completely loosen the fitting.
- Remove the studbolt and the tube.

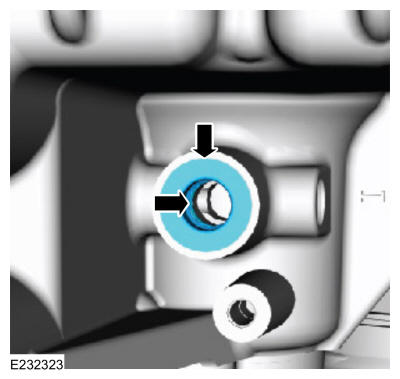

- Inspect the transmission to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission. If the transmission fluid tube seal or backing ring are stuck in the transmission, remove the seal and backing ring.

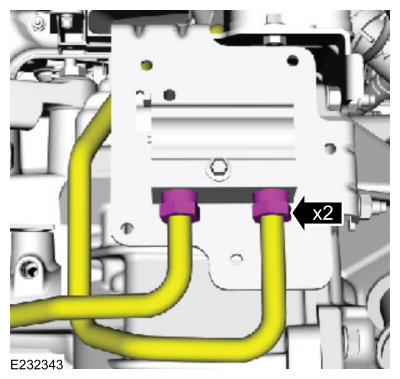

- Completely loosen the cooler bypass valve tube fittings.

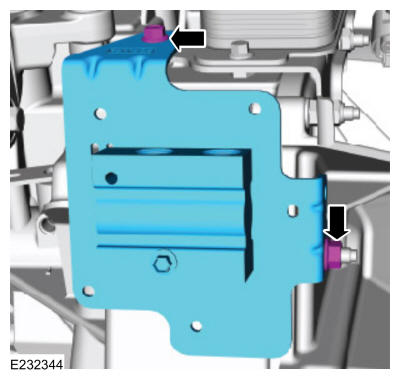

- Remove the nut, the bolt and the cooler bypass valve.
