Cooler Bypass Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install the cooler bypass valve, the bolt and the nut.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Completely loosen the cooler bypass valve tube fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

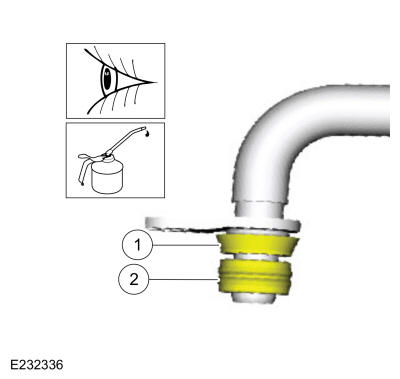

Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
Courtesy of FORD MOTOR COMPANY
Install the cooler bypass valve-to-transmission tube.
1. Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
2. Install the studbolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid warmer-to-cooler bypass valve tube.
1. Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
2. Install the studbolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

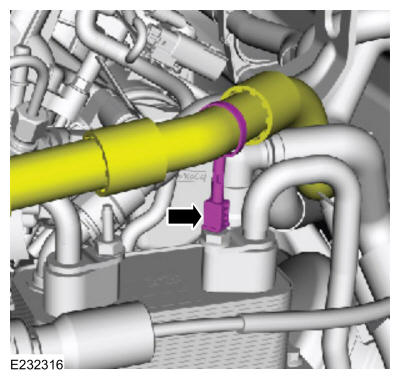

Connect the coolant hose standoff to the transmission fluid warmer tube studbolt.

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Install the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
