Transmission Fluid Auxiliary Cooler Cleaning

WARNING: This page is about a different variant/trim than selected.

For more information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Cleaning

  1. Remove the LH front wheel and tire. Refer to: Wheel and Tire .

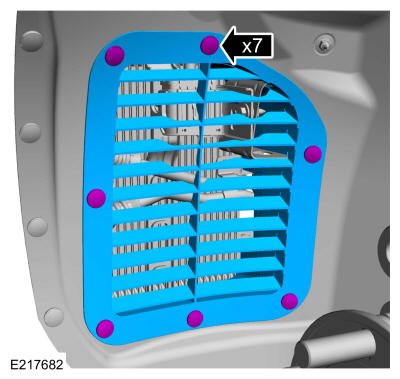

  2. Remove the retainers and the transmission fluid cooler inner fender cover.
    GFD261934Courtesy of FORD MOTOR COMPANY

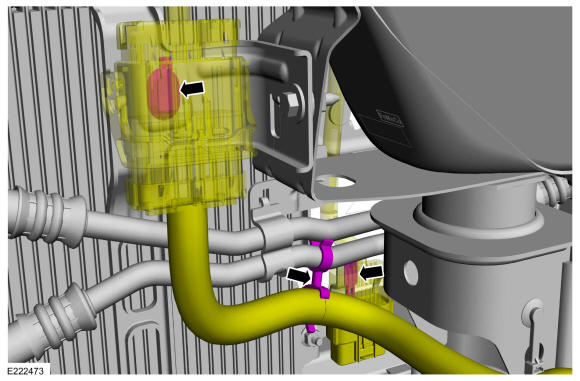

  3. Disconnect the electrical connector and wiring harness retainers.
    GFD261935Courtesy of FORD MOTOR COMPANY
  4. Using a garden hose with a nozzle, clean the transmission fluid auxiliary cooler.
  5. Connect the electrical connector and wiring harness retainers.
    GFD261935Courtesy of FORD MOTOR COMPANY
  6. Install the transmission fluid cooler inner fender cover and the retainers.
    GFD261934Courtesy of FORD MOTOR COMPANY
  7. Install the LH front wheel and tire. Refer to: Wheel and Tire .
