Transmission Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.

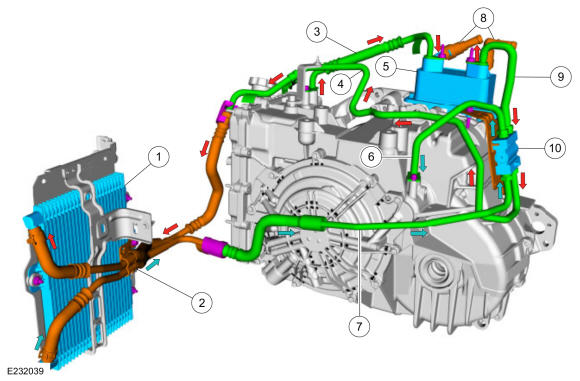

| Item | Description |
|---|---|
| 1 | Transmission fluid cooler |
| 2 | Transmission fluid cooler tube assembly |
| 3 | Transmission-to-transmission fluid warmer tube |
| 4 | Cooler bypass valve-to-transmission fluid cooler tube assembly tube |
| 5 | Transmission fluid warmer |
| 6 | Cooler bypass valve-to-transmission tube |
| 7 | Transmission fluid cooler tube assembly-to-cooler bypass valve tube |
| 8 | Transmission fluid warmer coolant hose quick connect couplings |
| 9 | Transmission fluid warmer-to-cooler bypass valve tube |
| 10 | Cooler bypass valve |
