High-Pressure Fuel Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not loosen any fittings or plugs on the high-pressure fuel pump.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

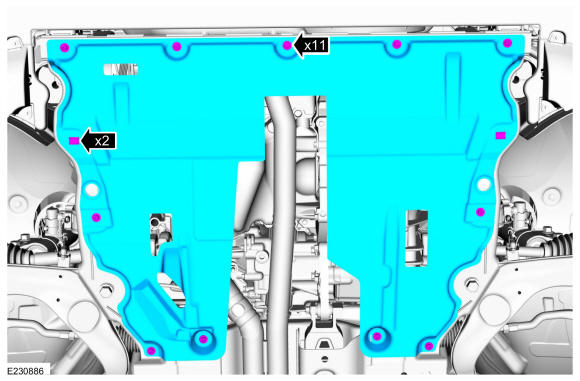

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

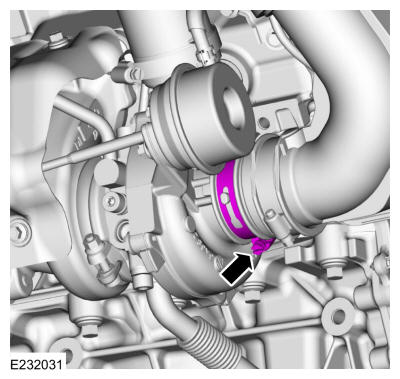

Loosen the clamp.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

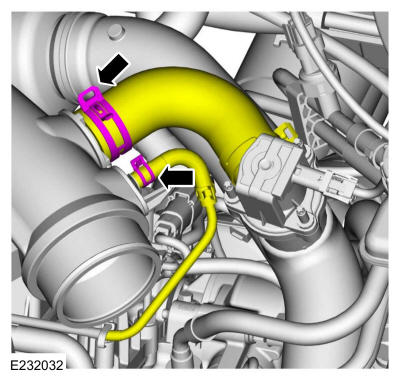

Release the clamps and disconnect the by-pass hose and the vacuum hose.

Courtesy of FORD MOTOR COMPANY

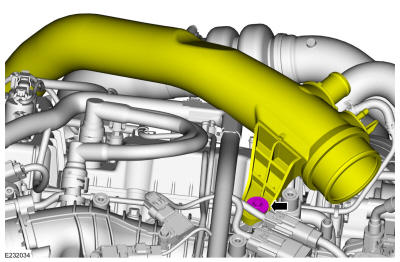

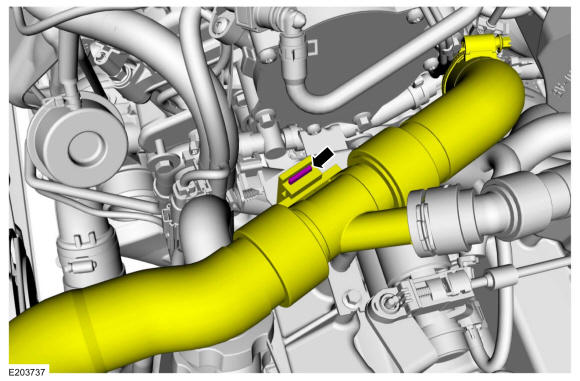

Remove the bolt and position the lower RH air cleaner outlet pipe aside.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

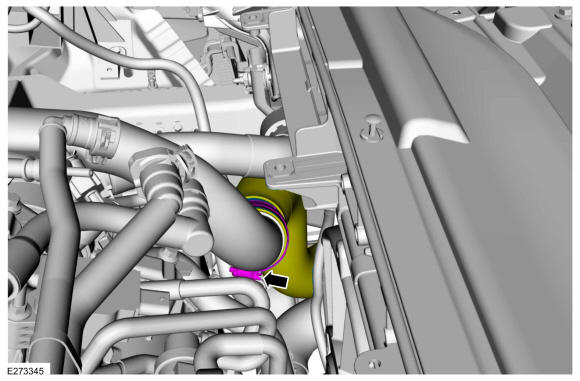

Loosen the CAC intake lower pipe RH clamp.

Courtesy of FORD MOTOR COMPANY

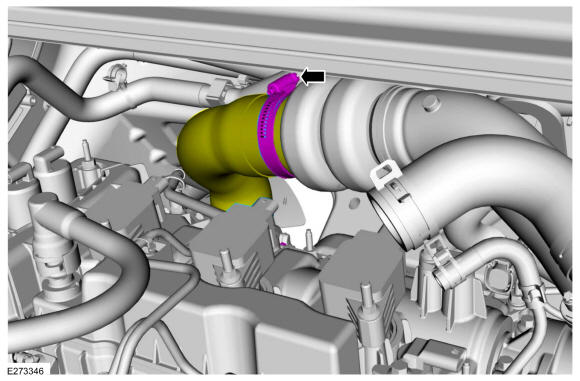

Loosen the CAC intake upper pipe RH clamp.

Courtesy of FORD MOTOR COMPANY

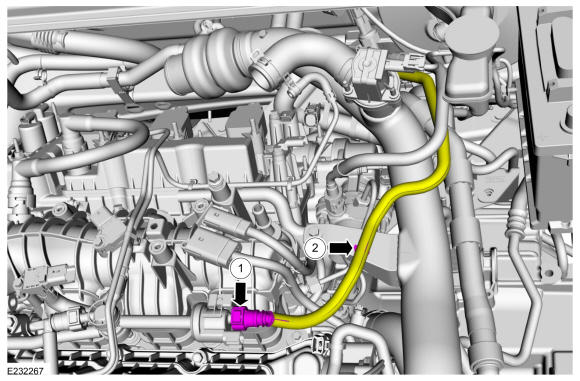

1. Disconnect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling .
2. Detach the retainer and position the EVAP canister purge valve tube aside.
Courtesy of FORD MOTOR COMPANY
Detach the coolant hose from the starter motor bracket.

Courtesy of FORD MOTOR COMPANY

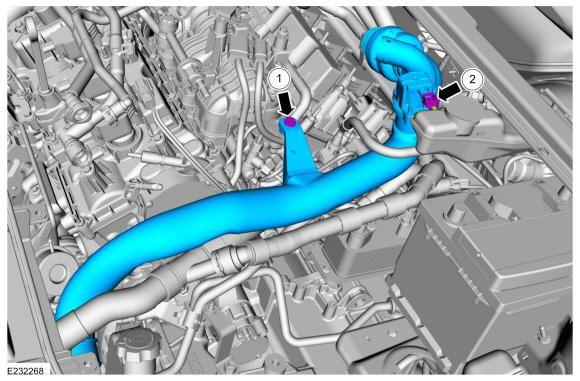

1. Remove the bolt.
2. Disconnect the bypass valve electrical connector and remove the CAC intake pipe RH.
Courtesy of FORD MOTOR COMPANY

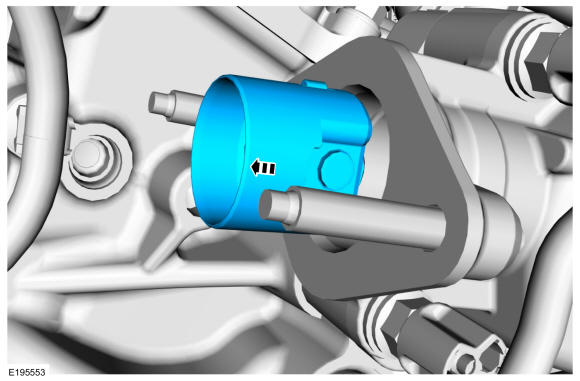

NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

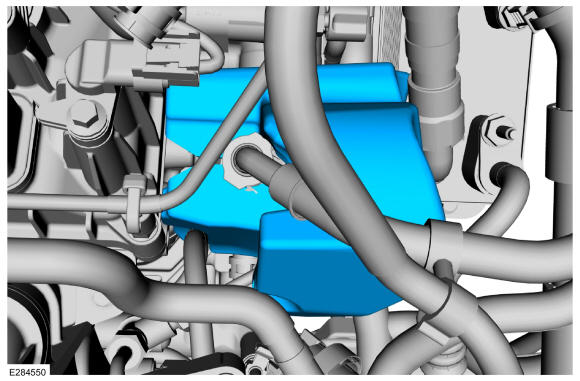

Remove the high-pressure fuel pump noise insulator.

Courtesy of FORD MOTOR COMPANY

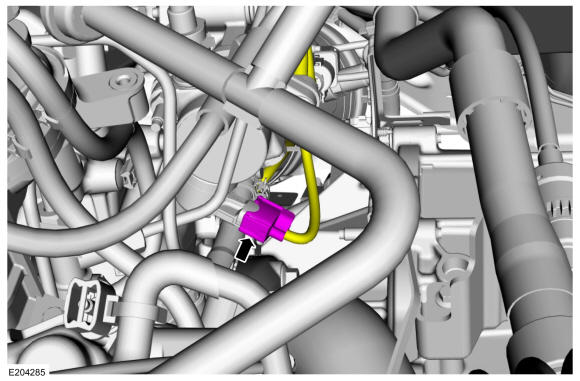

Disconnect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY

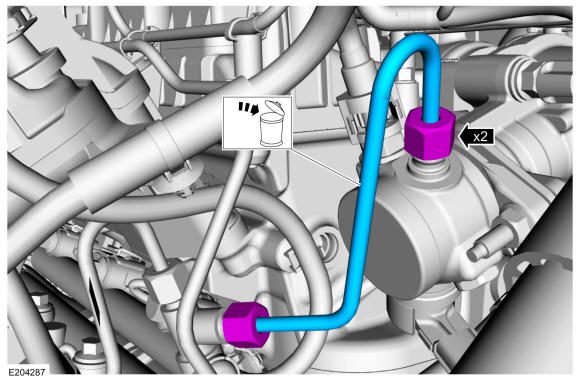

NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.

Disconnect the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts, then remove and discard the high-pressure fuel pump-to-fuel rail high-pressure fuel tube.

Courtesy of FORD MOTOR COMPANY

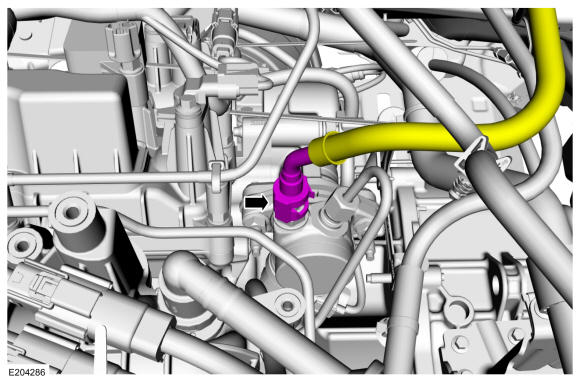

Disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

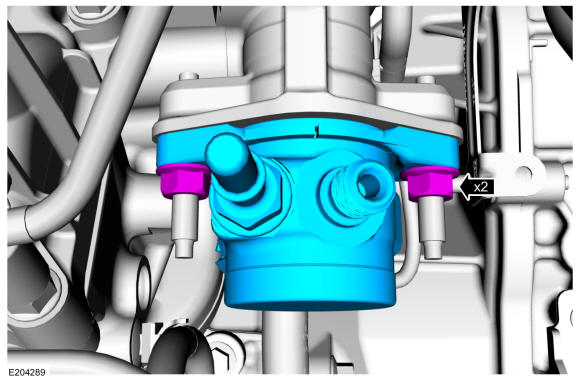

NOTE: Alternately loosen the high-pressure fuel pump nuts one complete revolution at a time.

Remove the high-pressure fuel pump nuts and then remove the high-pressure fuel pump.

Courtesy of FORD MOTOR COMPANY

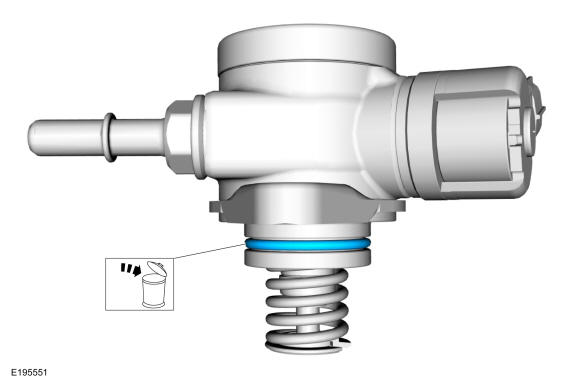

Remove and discard the high-pressure fuel pump O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY

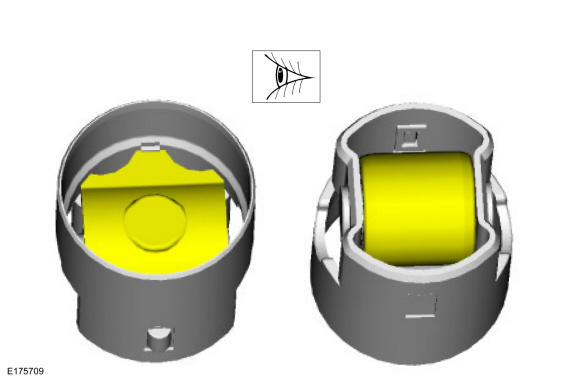

Inspect the high-pressure fuel pump tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as needed.

Courtesy of FORD MOTOR COMPANY
