Fuel Pump Driver Module (FPDM): Installation

WARNING: This page is about a different variant/trim than selected.

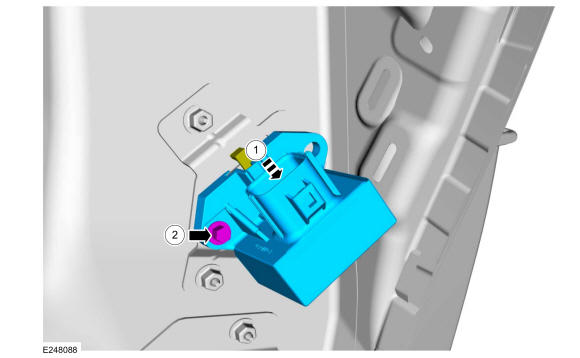

1. Install the upper FPDM to the bracket until it the retaining tab clicks into place.
2. Install and tighten the upper FPDM retaining bolt.
  Torque: 13 lb.in (1.5 Nm)
Courtesy of FORD MOTOR COMPANY

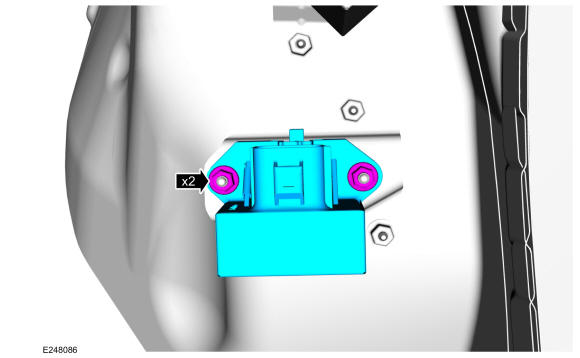

Install the lower FPDM, then install and tighten the FPDM retaining nuts.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

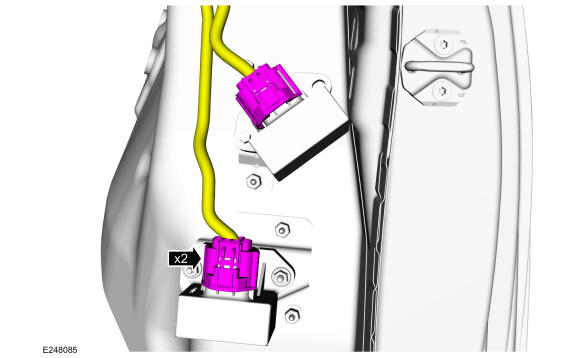

Connect the FPDM electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the left rear C-Pillar Lower Trim Panel. Refer to: C-Pillar Lower Trim Panel .
