Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.
3.0L EcoBoost

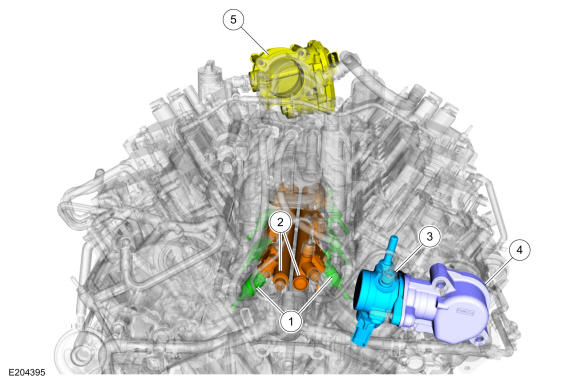

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Fuel injectors |
| 2 |
Fuel rails |
| 3 |
High-pressure fuel pump |
| 4 |
High-pressure fuel pump drive unit |
| 5 |
Throttle Body |

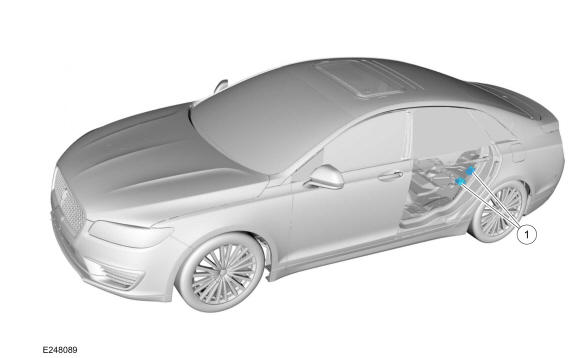

Fuel pump driver module
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Fuel pump driver modules |
