Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

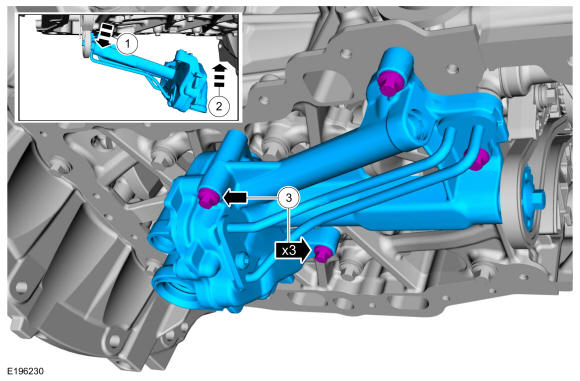

1. Install the oil pump sprocket into the oil pump drive chain.
2. Raise rear of the oil pump assembly into the installed position.
3. Install the oil pump bolts.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 45 °
Courtesy of FORD MOTOR COMPANY

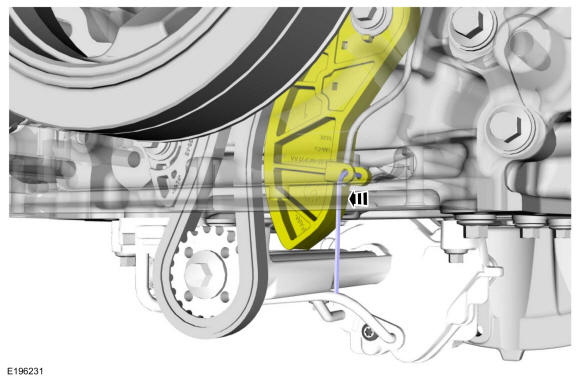

Remove the pin.

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .
