Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

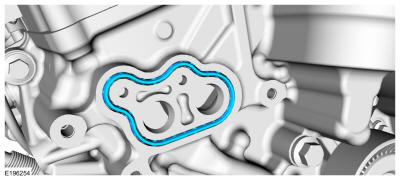

  1. Install a new gasket.
    GFD259962Courtesy of FORD MOTOR COMPANY

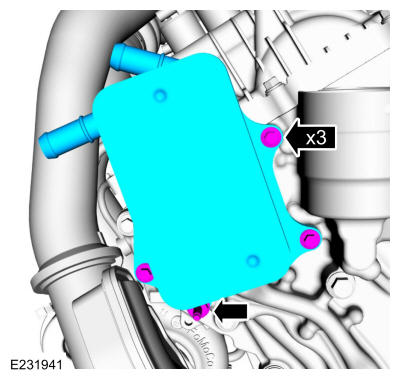

  2. Install the oil cooler and the fasteners.

    Torque: 89 lb.in (10 Nm)

    GFD259959Courtesy of FORD MOTOR COMPANY

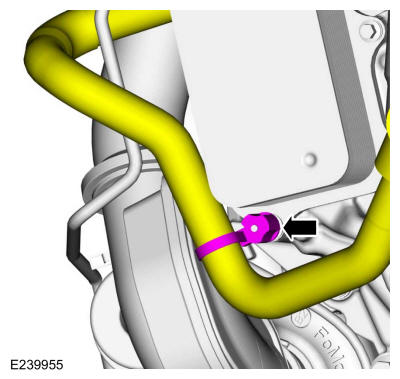

  3. Position the coolant hose and attach the retainer.
    GFD259958Courtesy of FORD MOTOR COMPANY

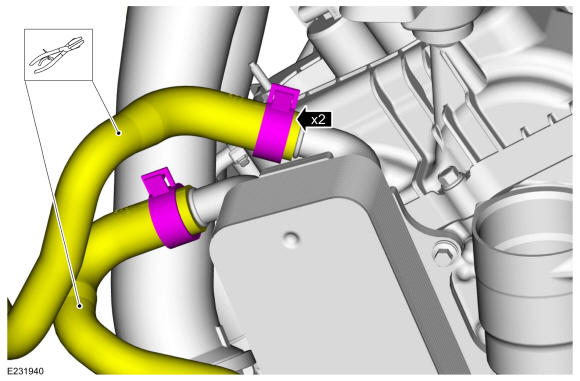

    • Install the coolant hoses and clamps. Use the General Equipment: Hose Clamp Remover/Installer

    • Remove the hose locking pliers. Use the General Equipment: Locking Pliers

    GFD259957Courtesy of FORD MOTOR COMPANY
  5. Install the PCM. Refer to: Powertrain Control Module (PCM) .
  6. Attach the wiring harness retainer to the engine mount.
    GFD259670Courtesy of FORD MOTOR COMPANY
  7. Connect the engine wiring harness electrical connectors and attach the wiring harness retainer.
    GFD258931Courtesy of FORD MOTOR COMPANY
  8. If equipped, install the wiring harness cover and the retainer.
    GFD258955Courtesy of FORD MOTOR COMPANY
  9. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
  10. Inspect and adjust the coolant level in the degas bottle.

    Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
