Cylinder Head RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the RH camshafts. Refer to: Camshaft RH .
  3. Disconnect the right hand HO2S and right hand catalyst monitor sensor electrical connectors.
    GFD259883Courtesy of FORD MOTOR COMPANY

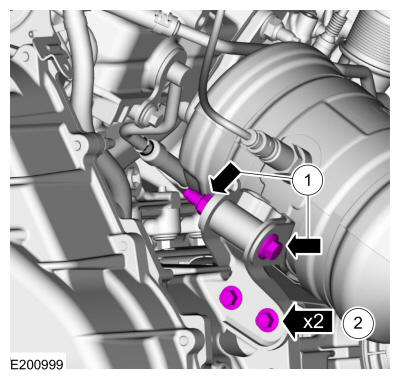

    1. Loosen.
    2. Remove.
    GFD259884Courtesy of FORD MOTOR COMPANY

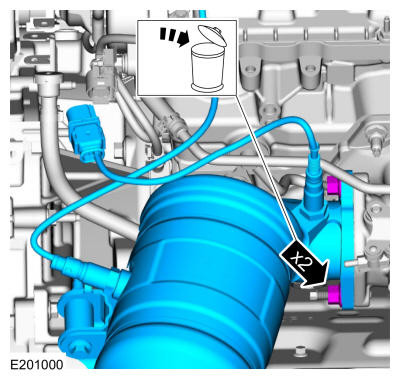

    1. Remove and discard the RH catalytic converter nuts.
    2. Remove the RH catalytic converter.
    GFD259885Courtesy of FORD MOTOR COMPANY

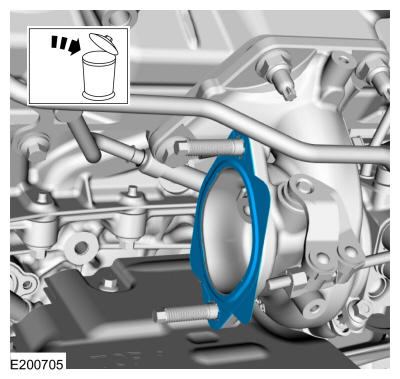

  6. Remove and discard the RH catalytic converter gasket.
    GFD259886Courtesy of FORD MOTOR COMPANY

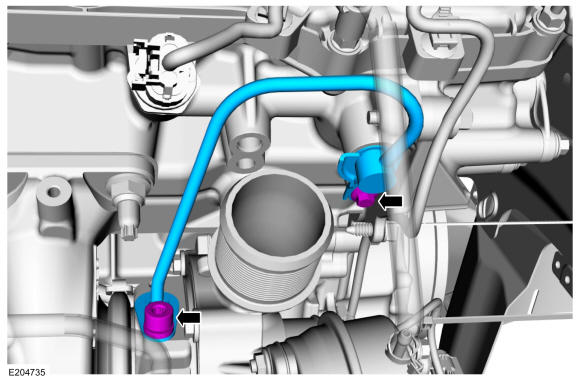

  7. Remove the bolts and the TC oil supply tube.
    GFD259887Courtesy of FORD MOTOR COMPANY

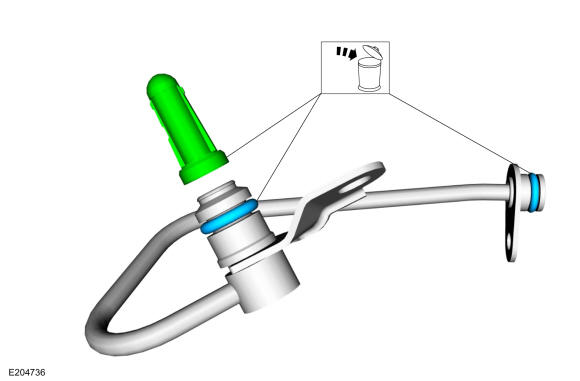

  8. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.
    GFD259888Courtesy of FORD MOTOR COMPANY
  9. Remove the bolt and disconnect the TC coolant return tube.
    GFD259889Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the TC coolant return tube O-ring seal.
    GFD259890Courtesy of FORD MOTOR COMPANY
  11. Release the clamp and disconnect the vacuum hose.
    GFD259891Courtesy of FORD MOTOR COMPANY
  12. NOTE: AWD shown FWD is similar.

    Remove the bolts and the TC oil return tube.

    GFD259892Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the TC oil return tube O-ring seal.
    GFD259856Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the TC oil return tube tube-to-engine block gasket.
    GFD259857Courtesy of FORD MOTOR COMPANY

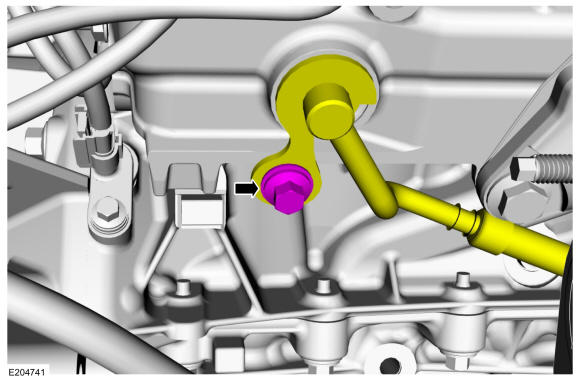

  15. Remove the TC coolant supply tube bolt.
    GFD259893Courtesy of FORD MOTOR COMPANY

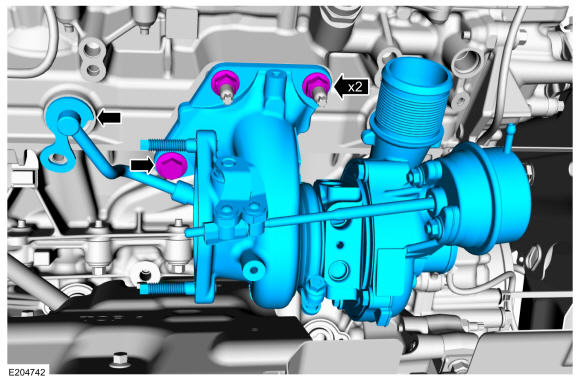

  16. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove the retainers and the TC.

    GFD259894Courtesy of FORD MOTOR COMPANY
  17. Remove and discard the TC coolant supply tube O-ring seal.
    GFD259860Courtesy of FORD MOTOR COMPANY

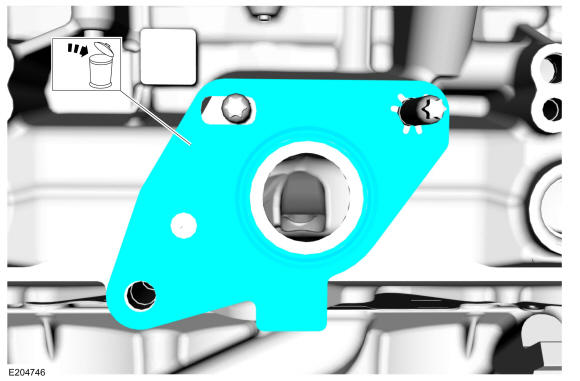

  18. Remove and discard the TC gasket.
    GFD259895Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the TC mounting studs.
    GFD259896Courtesy of FORD MOTOR COMPANY

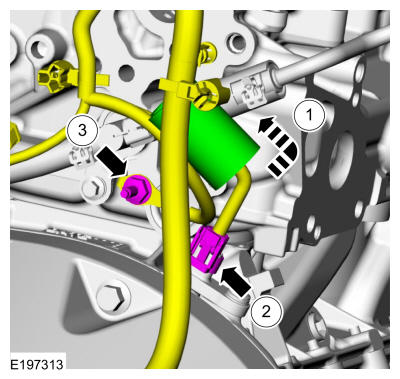

    1. Reposition the CKP sensor electrical connector insulator.
    2. Disconnect the CKP sensor electrical connector.
    3. Remove the stud bolt and the wiring harness ground.
    GFD259897Courtesy of FORD MOTOR COMPANY
    • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    • NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

      Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

    GFD259898Courtesy of FORD MOTOR COMPANY
  22. Loosen the bolts and remove the intake manifold.
    GFD259863Courtesy of FORD MOTOR COMPANY
    • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD259864Courtesy of FORD MOTOR COMPANY

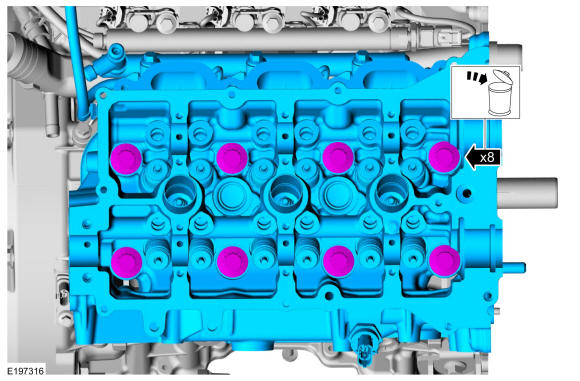

    • Remove and discard the cylinder head bolts.

    • Remove the cylinder head.

    GFD259899Courtesy of FORD MOTOR COMPANY

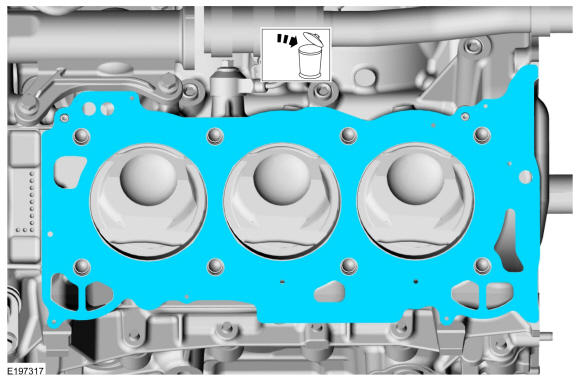

  25. Remove and discard the cylinder head gasket.
    GFD259900Courtesy of FORD MOTOR COMPANY

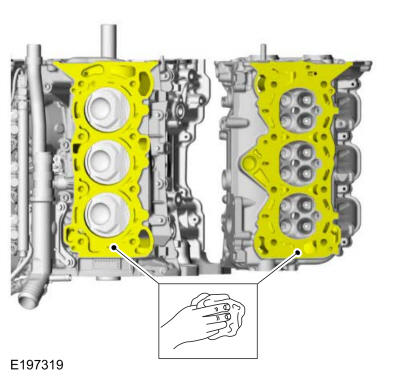

    • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.

GFD259901Courtesy of FORD MOTOR COMPANY
