Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.

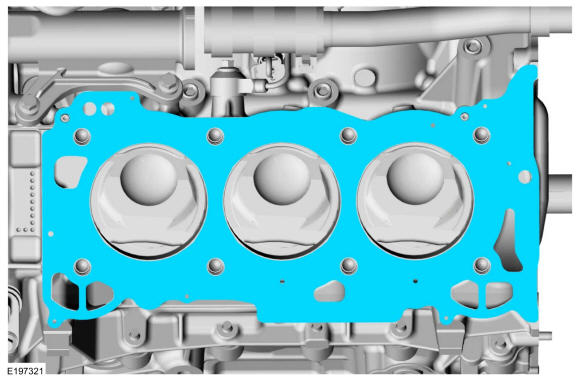

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque:

  Stage 1: 177 lb.in (20 Nm)

  Stage 2: Loosen: 2 turn(s)

  Stage 3: 37 lb.ft (50 Nm)

  Stage 4: 180 °

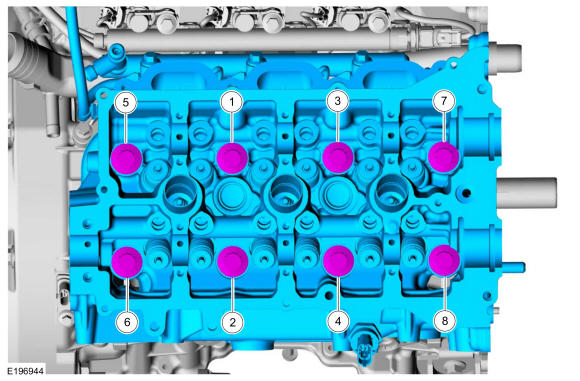

Fig 1: Cylinder Head Tightening Sequence RH
Courtesy of FORD MOTOR COMPANY

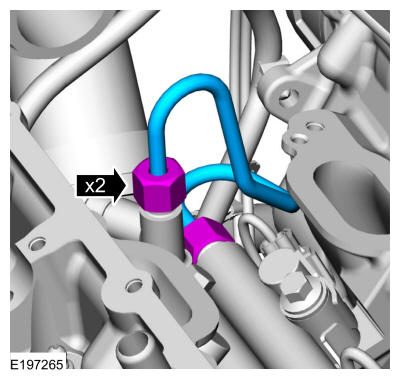

Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque:

  Stage 1: 62 lb.in (7 Nm)

  Stage 2: 89 lb.in (10 Nm)

  Stage 3: 25 °
Courtesy of FORD MOTOR COMPANY

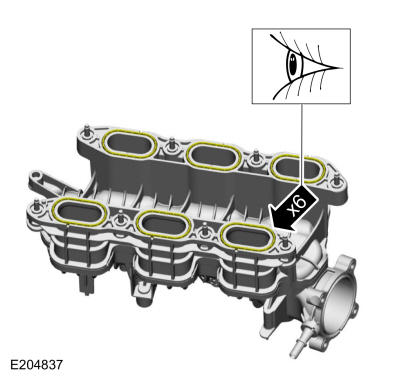

Inspect the intake manifold gaskets and replace as necessary.

Courtesy of FORD MOTOR COMPANY

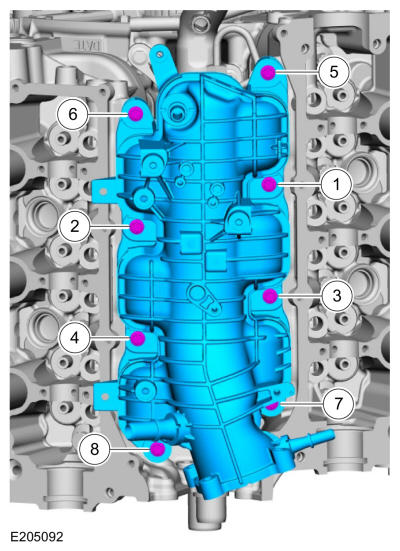

Install the manifold and tighten the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY

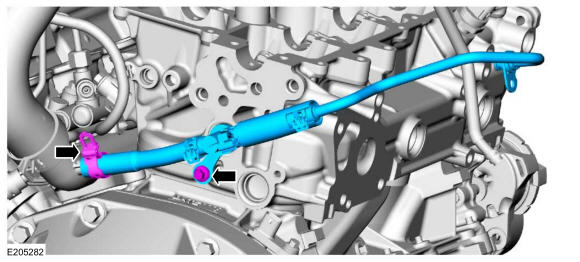

- Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque: 89 lb.in (10 Nm)
- Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

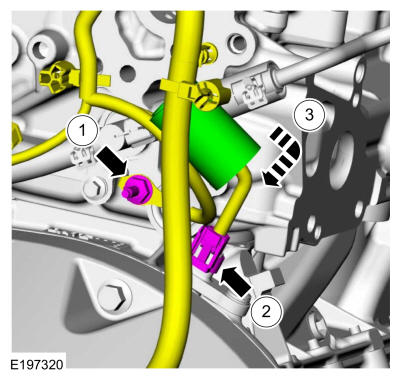

1. Install the wiring harness ground and the stud bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the CKP sensor electrical connector.
3. Install the CKP sensor electrical connector insulator.
Courtesy of FORD MOTOR COMPANY

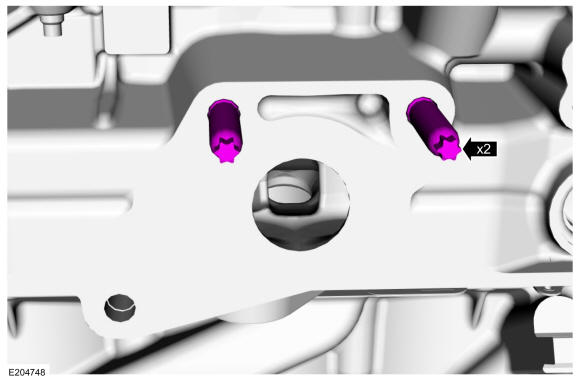

If removed install and then tighten the TC mounting studs.
Torque: 102 lb.in (11.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new TC gasket.

Courtesy of FORD MOTOR COMPANY

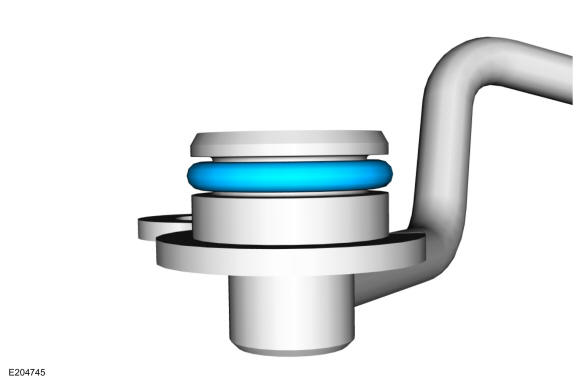

Install a new TC coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.

Courtesy of FORD MOTOR COMPANY

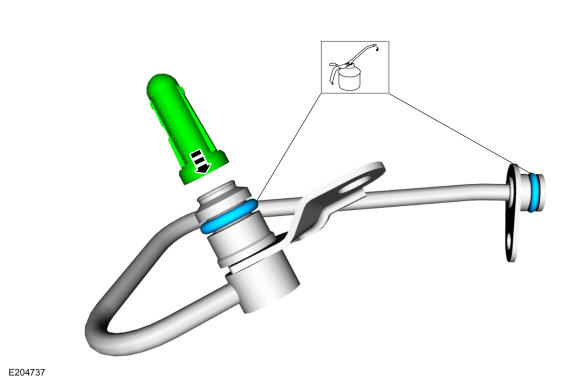

Install the new TC oil supply tube O-ring seals and the new oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Install the TC oil supply tube and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the new filter when installing the oil supply tube into the engine block.

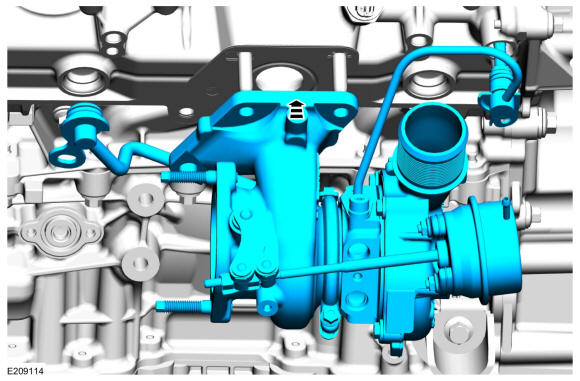

Position the TC assembly onto the studs. Install the coolant supply and oil supply tubes into the engine block while installing the TC.

Courtesy of FORD MOTOR COMPANY

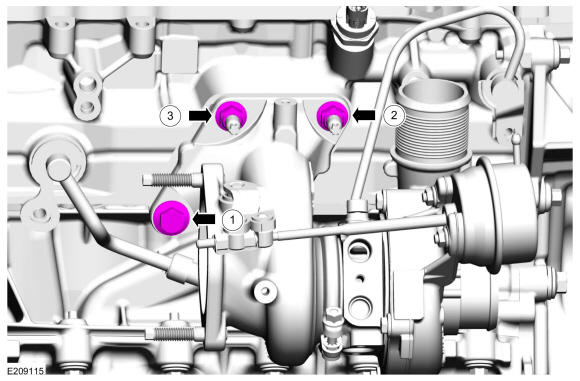

Install the nuts and bolt.
Torque:

1: 44 lb.ft (60 Nm)

2: 44 lb.ft (60 Nm)

3: 27 lb.ft (37 Nm)

Re-tighten 1: 44 lb.ft (60 Nm)

Re-tighten 2: 44 lb.ft (60 Nm)

Re-tighten 3: 27 lb.ft (37 Nm)

Courtesy of FORD MOTOR COMPANY

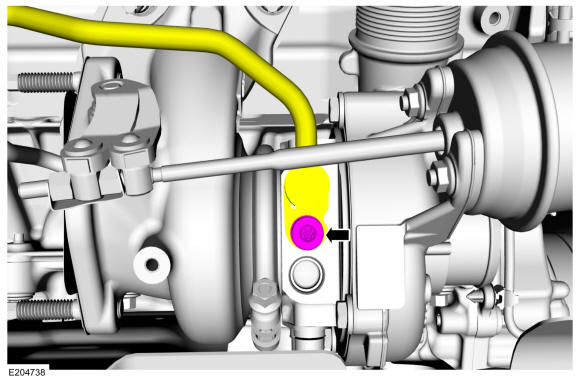

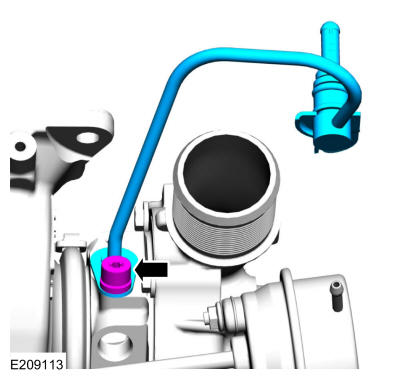

Install the TC coolant supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

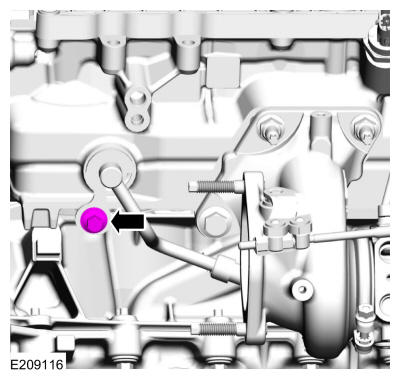

Install the TC oil supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

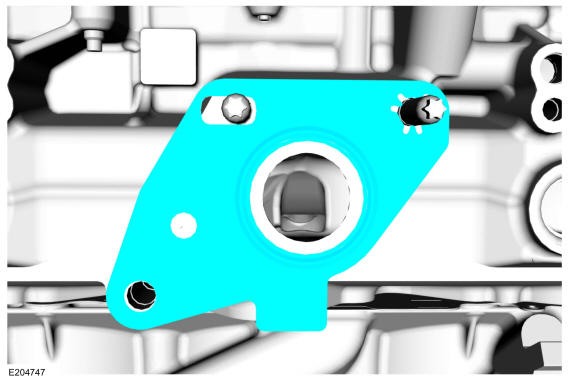

Install the new TC oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

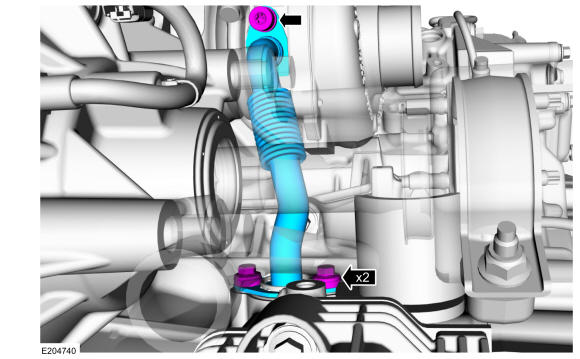

NOTE: AWD shown FWD is similar.

Install the TC oil return tube and the bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new TC coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.
Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Courtesy of FORD MOTOR COMPANY
Install the TC coolant return tube to the TC and install the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

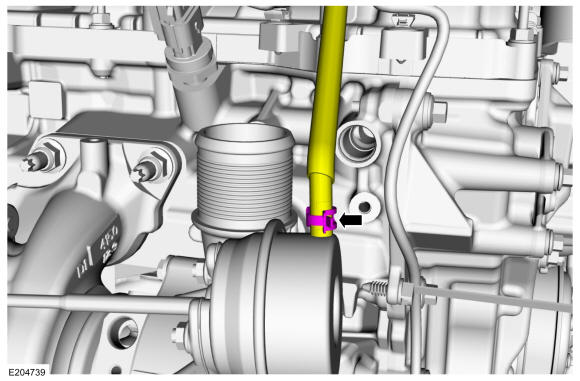

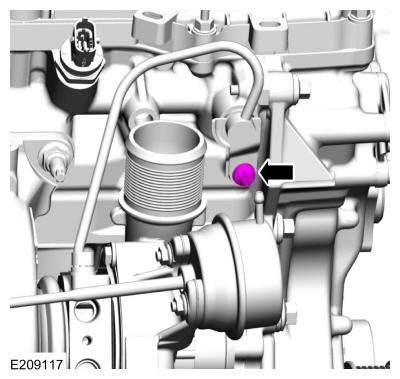

Connect the vacuum hose and clamp.

Courtesy of FORD MOTOR COMPANY

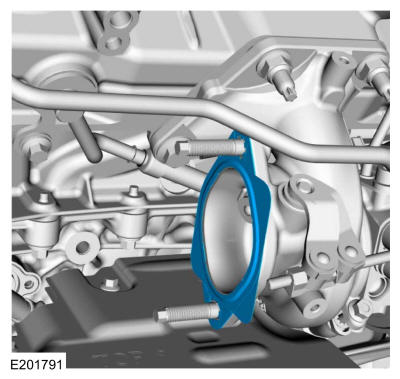

Install a new RH catalytic converter gasket.

Courtesy of FORD MOTOR COMPANY
1. Install the RH catalytic converter.
2. Install new RH catalytic converter nuts.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

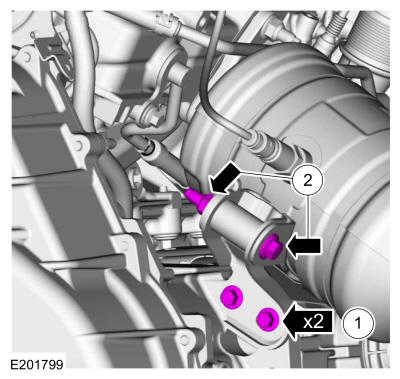

1. Install.
  Torque: 22 lb.ft (30 Nm)
2. Tighten.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

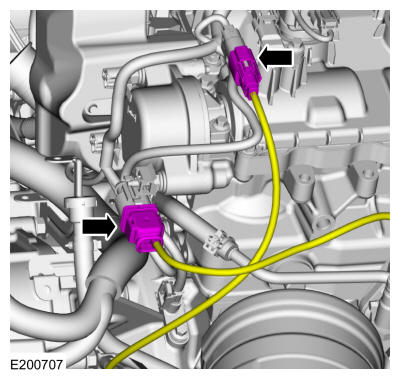

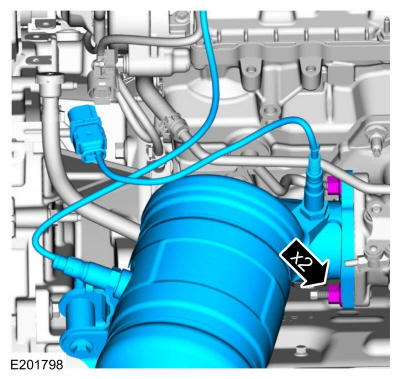

Connect the right hand HO2S and right hand catalyst monitor sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the RH camshafts. Refer to: Camshaft RH .
