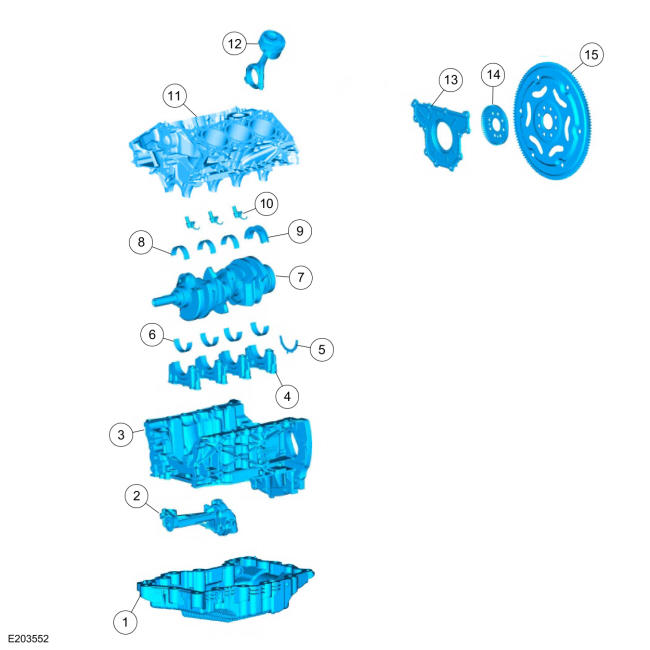

Engine - Lower Components With Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6675 | Oil pan |
| 2 | 6600 | Oil pump |
| 3 | 6U004 | Engine block skirt stiffener |
| 4 | - | Crankshaft main bearing cap (part of 6010) (4 required) |
| 5 | 6K302 | Lower thrust washer |
| 6 | 6A338 | Crankshaft lower main bearing (4 required) |
| 7 | 6303 | Crankshaft |
| 8 | 6333 | Crankshaft upper main bearing (3 required) |
| 9 | 6337 | Crankshaft upper thrust main bearing |
| 10 | 6A340 | Piston oil coolers (3 required) |
| 11 | 6010 | Cylinder block |
| 12 | 6100 | Piston and rod assembly (6 required) |
| 13 | 6K318 | Crankshaft rear seal retainer plate |
| 14 | 12A227 | Crankshaft sensor ring |
| 15 | 6375 | Flexplate |
