Ignition Coil-On-Plug: Removal

Both sides

1. Remove the nut.

   Torque: 42 lb.in (4.8 Nm)

2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.

   Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

   Left side

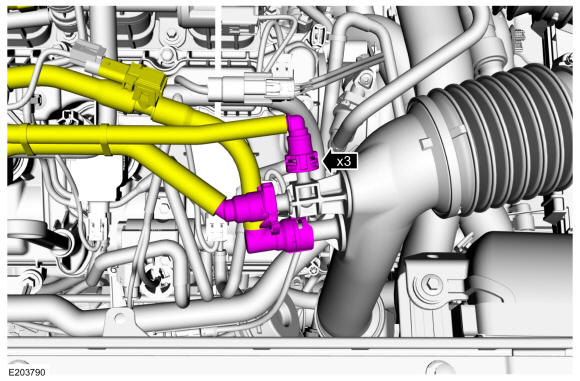

4. Disconnect the quick release couplings.Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

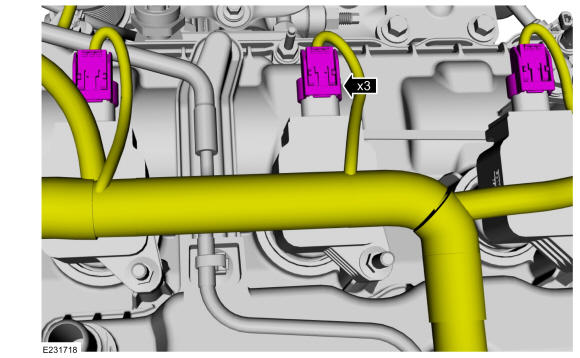

5. Release the electrical harness retainers from the ignition coil-on-plug studbolts, then disconnect the ignition coil-on-plug electrical connectors.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
   NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

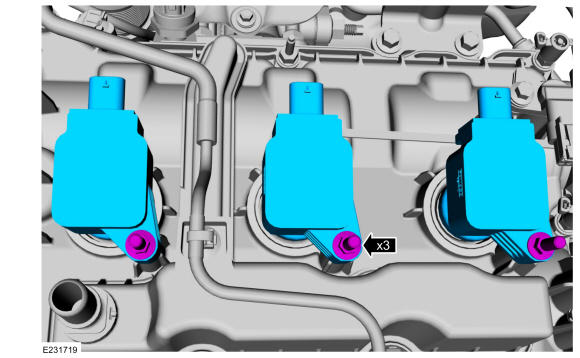

   Remove the ignition coil-on-plug retaining studbolts, then remove the ignition coil-on-plugs.

   Courtesy of FORD MOTOR COMPANY

   Right side

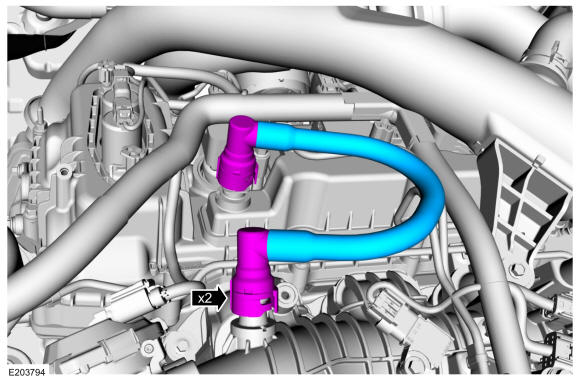

7. Disconnect the quick release couplings and then remove the crankcase ventilation hose.Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

8. Remove the air cleaner outlet pipe RH.Refer to: Air Cleaner Outlet Pipe RH .

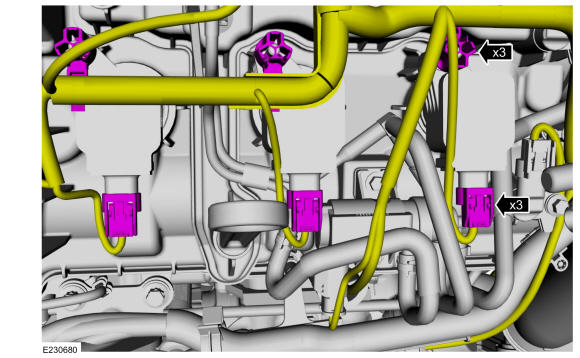

9. Detach the wire harness retainers from the studbolts.

   Courtesy of FORD MOTOR COMPANY

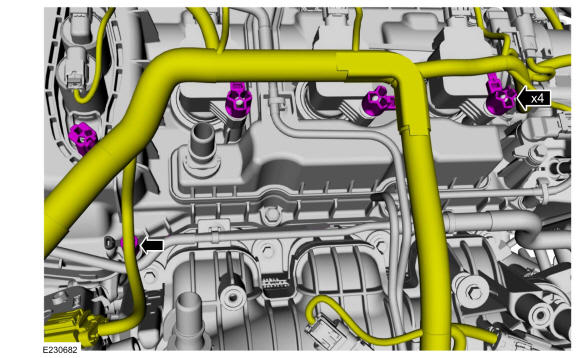

10. Disconnect the ignition coil-on-plug electrical connectors.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

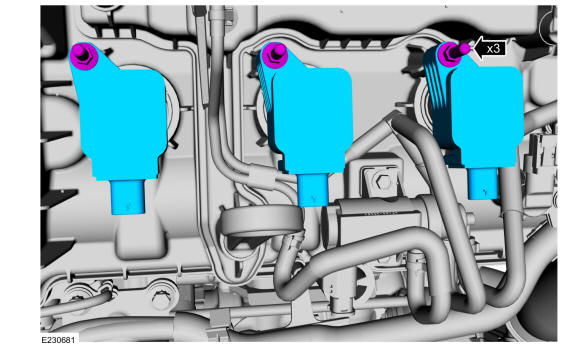

    Remove the ignition coil-on-plug retaining studbolts, then remove the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY
