Ignition Coil-On-Plug: Installation

Both sides

1. Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assembly's.

   Courtesy of FORD MOTOR COMPANY

   Right side

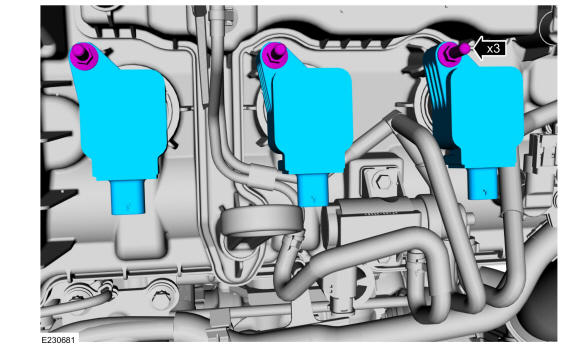

2. Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.

   Torque: 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

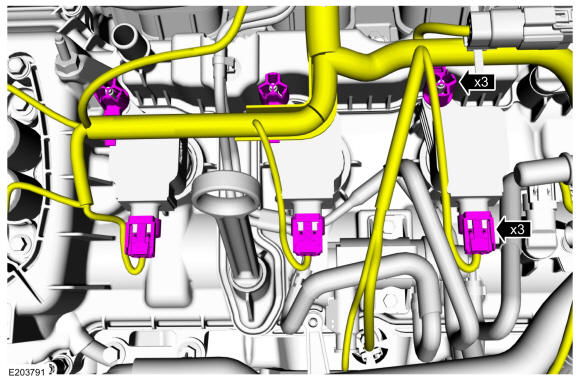

3. Connect the ignition coil-on-plug electrical connectors.

   Courtesy of FORD MOTOR COMPANY

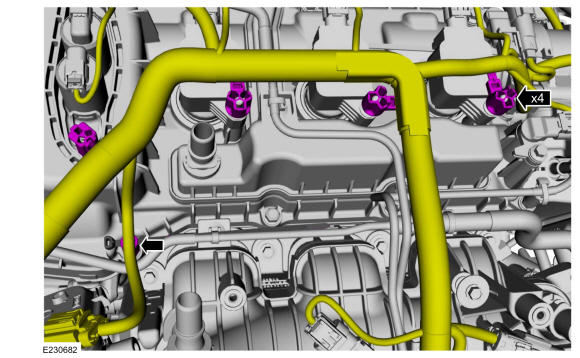

4. Attach the wire harness retainers to the studbolts.

   Courtesy of FORD MOTOR COMPANY

5. Install the air cleaner outlet pipe RH.Refer to: Air Cleaner Outlet Pipe RH .

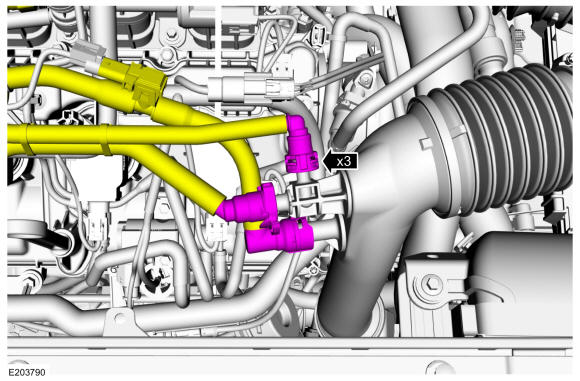

6. Install the crankcase ventilation hose and then connect the quick release couplings.Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

   Left side

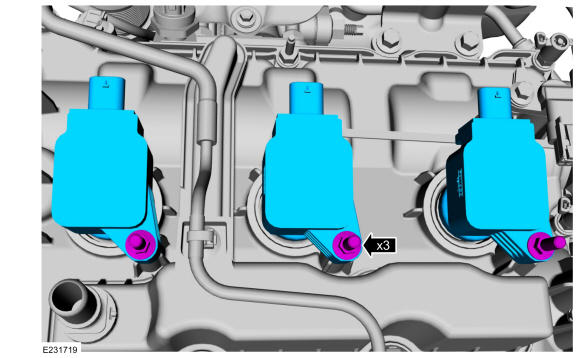

7. Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.

   Torque: 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

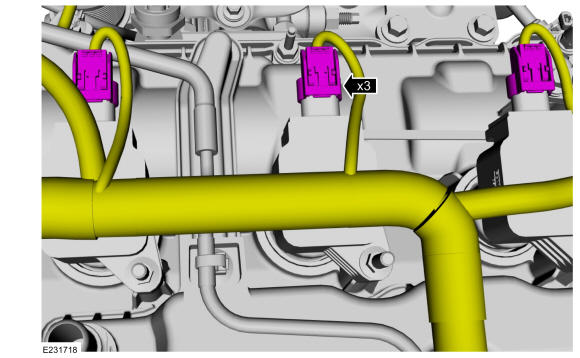

8. Connect the ignition coil-on-plug electrical connectors, then attach the electrical harness retainers to the ignition coil-on-plug studbolts.

   Courtesy of FORD MOTOR COMPANY

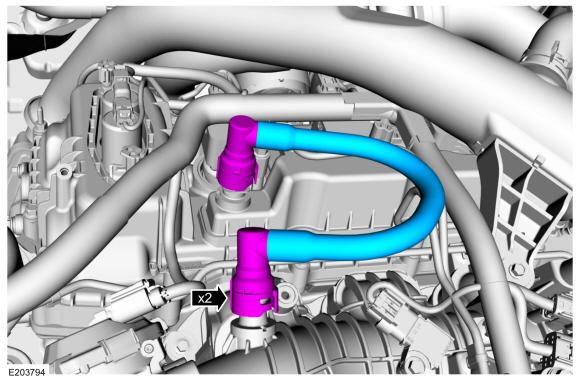

9. Connect the quick release couplings.Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

   Both sides

10. Install the engine appearance cover, then install and tighten the engine appearance cover retainer.

    Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
