Power Transfer Unit Vent: Installation

WARNING: This page is about a different variant/trim than selected.

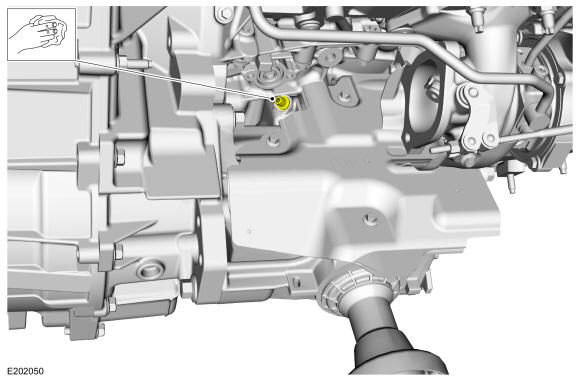

  1. Clean the PTU vent fitting.
    GFD262202Courtesy of FORD MOTOR COMPANY

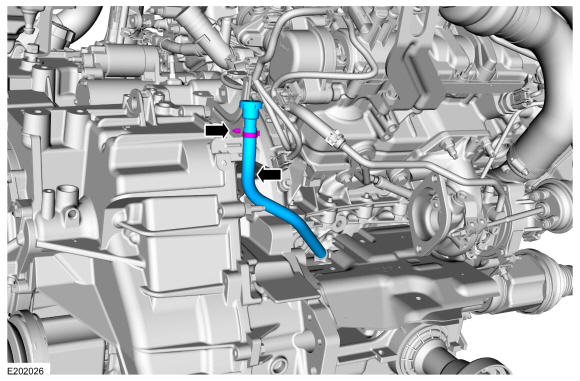

  2. Connect the PTU vent hose.
    GFD262201Courtesy of FORD MOTOR COMPANY
  3. Install the RH catalytic converter. Refer to: Catalytic Converter RH .
