Power Transfer Unit Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PTU/transfer case. Refer to: Power Transfer Unit Input Shaft Seal .

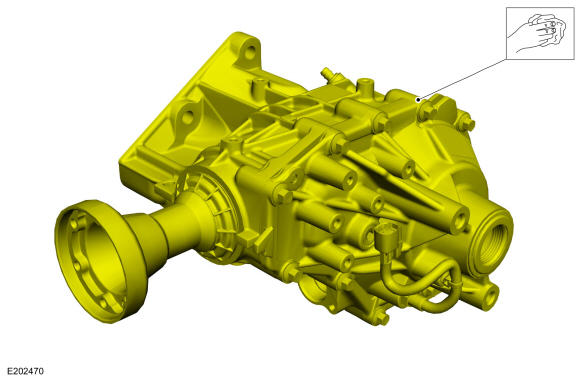

  2. Clean the PTU assembly.
    GFD262184Courtesy of FORD MOTOR COMPANY

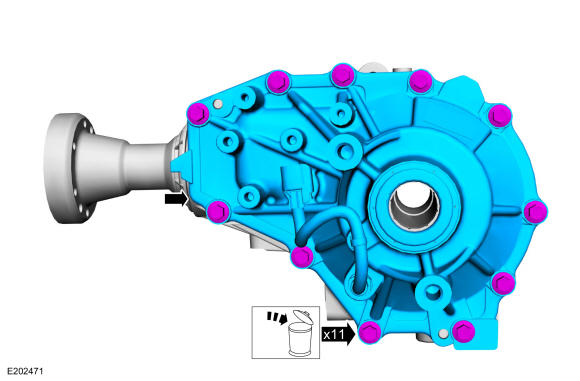

  3. Remove and discard the PTU cover bolts and remove PTU cover.
    GFD262185Courtesy of FORD MOTOR COMPANY

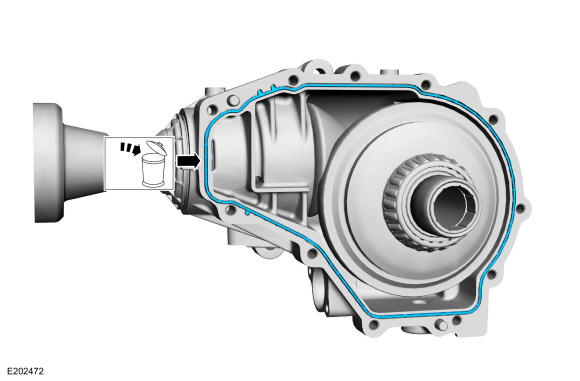

  4. Remove and discard the PTU cover O-ring seal.
    GFD262186Courtesy of FORD MOTOR COMPANY
  5. Remove the input shaft assembly.
    GFD262187Courtesy of FORD MOTOR COMPANY

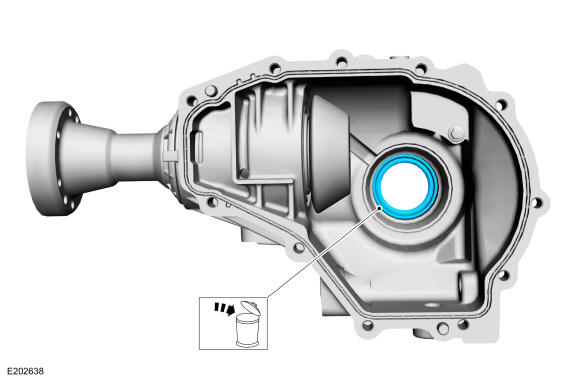

  6. Remove the LH input shaft seal.
    GFD262188Courtesy of FORD MOTOR COMPANY

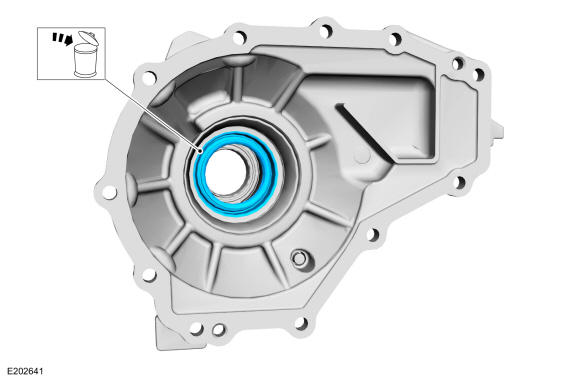

  7. Remove the RH input shaft seal.
GFD262189Courtesy of FORD MOTOR COMPANY
