Intermediate Shaft Bushing: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intermediate shaft seal. Refer to: Intermediate Shaft Seal .

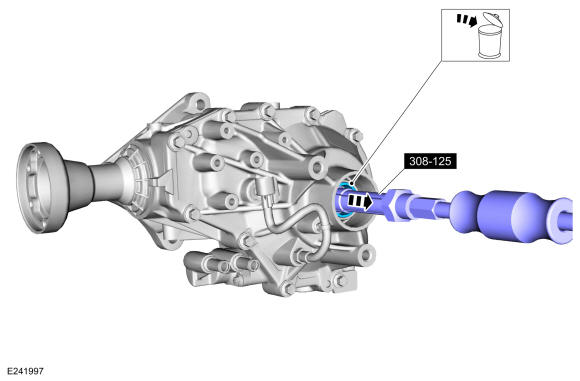

  2. Using the special tool and a slide hammer, remove and discard the intermediate shaft bushing.Use Special Service Tool: 308-125 Remover, Transfer Case Bearing.Use the General Equipment: Slide Hammer
GFD262177Courtesy of FORD MOTOR COMPANY
