Power Transfer Unit Draining and Filling
WARNING: This page is about a different variant/trim than selected.
For more information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL | WSL-M2C192-A |
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02).
- Remove the underbody shield.

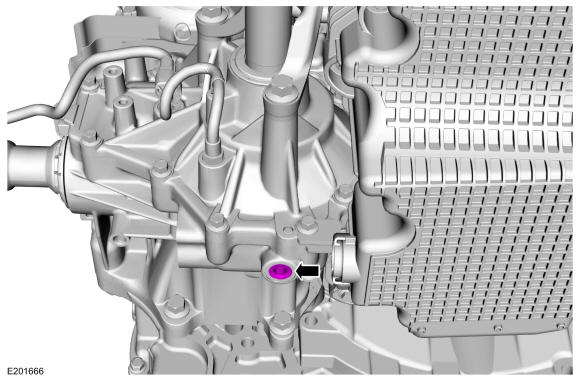

- Remove the PTU drain plug.
- Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)
Filling
- Remove the PTU fill plug.
-
NOTE: The fill capacity of the PTU is 23 fl oz (700 ml).
Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)
- Install the underbody shield.
