Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control cover.. REFER to: Main Control Cover . .

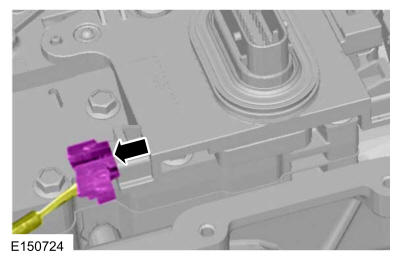

  2. Disconnect the TSS sensor.
    GFD261567Courtesy of FORD MOTOR COMPANY

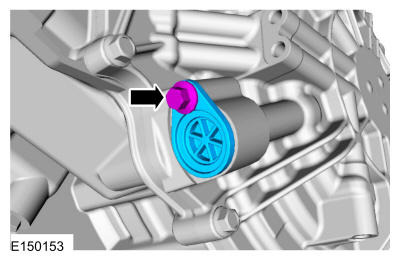

  3. Remove the bolt and the TSS sensor.
GFD261568Courtesy of FORD MOTOR COMPANY
