Removal And Installation: Transmission: Installation

All vehicles

1. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.

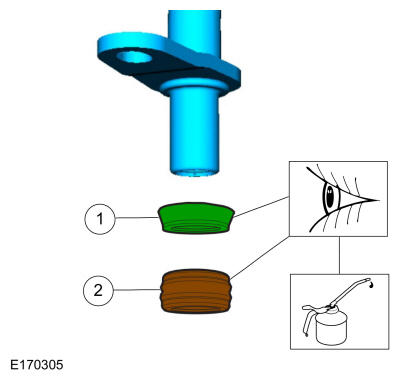

   1. Install the backing ring (7J324)
   2. Lubricate and install the seal (7D258)

      Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

   Courtesy of FORD MOTOR COMPANY

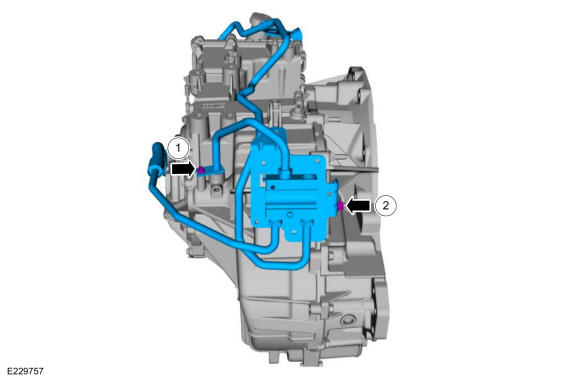

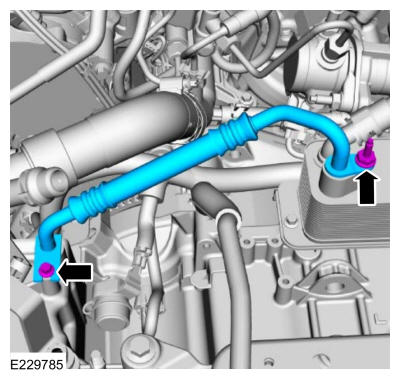

2. Install the transmission mounted transmission fluid cooler tubes, the new bolt and the nut.
   1. Torque: 97 lb.in (11 Nm)
   2. Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

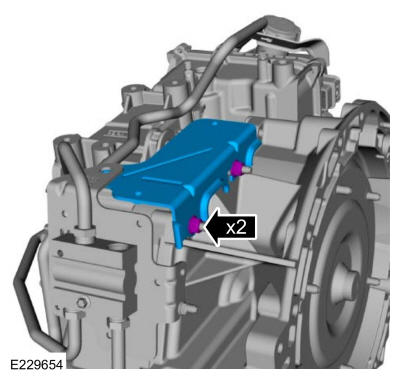

3. Install the transmission fluid warmer bracket and nuts.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
   NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

   Install the manual control lever and nut.

   Torque: 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

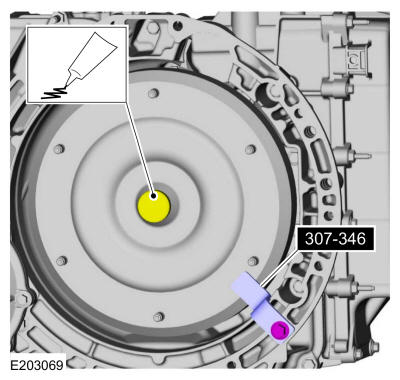

5. Lubricate the torque converter pilot hub with Multi-Purpose Grease.Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

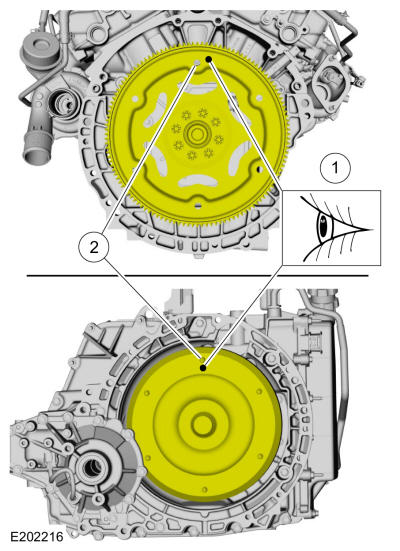

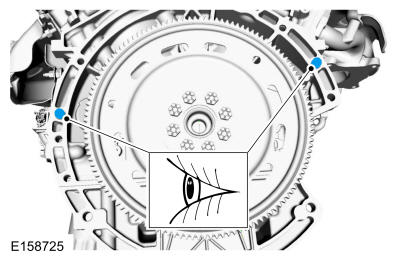

6. 1. Inspect the torque converter stud and flexplate for paint marks.
   2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Secure the transmission to the transmission jack with a safety strap.

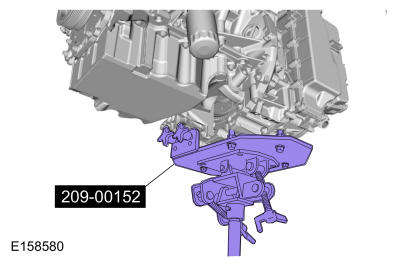

   Using a transmission jack, support the transmission.Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

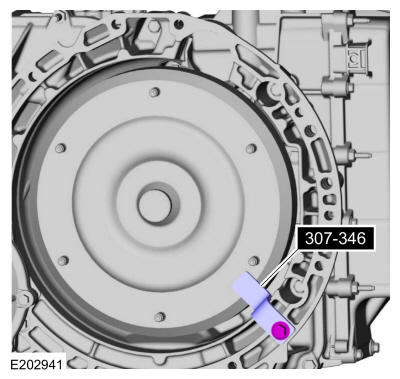

9. Position the transmission behind the engine and remove the special tool.Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

10. Position the transmission on the dowel pins and install the lower transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the LH transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

12. 1. If equipped, install the RH transmission-to-engine bolt.

       Torque: 35 lb.ft (48 Nm)

    2. Install the ground cable and nut.

       Torque: 133 lb.in (15 Nm)

    3. Connect the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

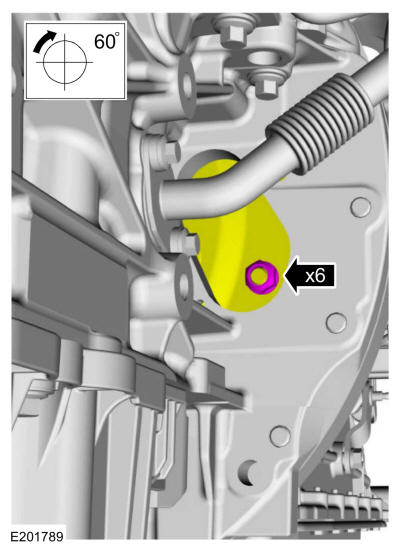

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

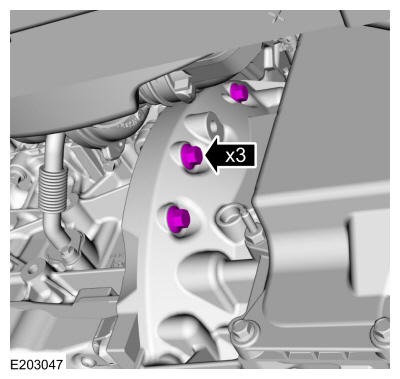

    Courtesy of FORD MOTOR COMPANY

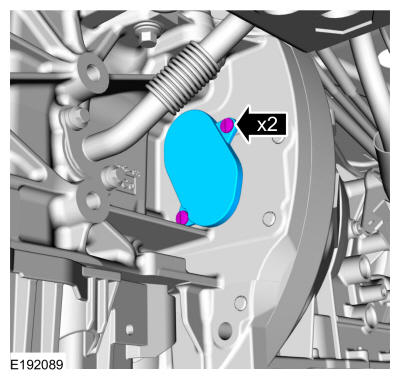

14. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

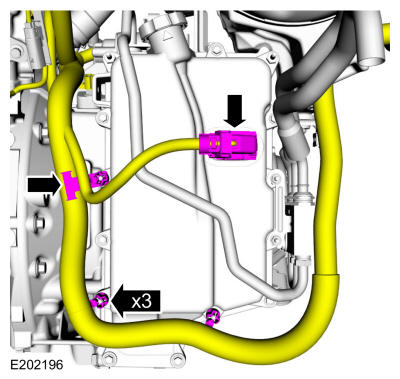

15. Connect the electrical connector and the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

16. Install the roll restrictor bracket and the bolts.

    Material: Motorcraft® Threadlock and Sealer / TA-25-B

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with front wheel drive (FWD)

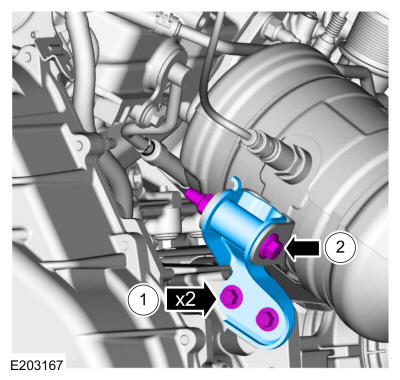

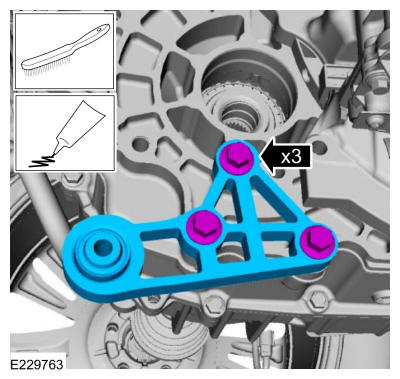

17. Install the catalytic converter bracket and the bolts.
    1. Torque: 22 lb.ft (30 Nm)
    2. Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

18. 1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. REFER to: Halfshaft Seal RH - FWD .

20. NOTE: Do not fully install the shaft at this time.

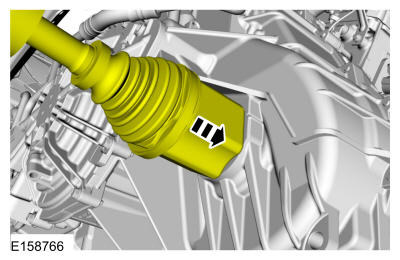

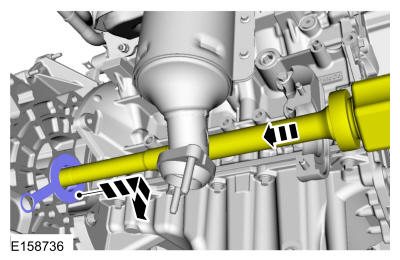

    Using part: 4W1W-4N206-A, install the inboard splines of the RH halfshaft through the halfshaft seal protector and the new halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

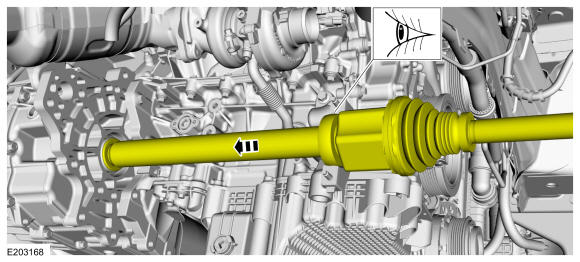

21. Install the RH halfshaft until the intermediate shaft bearing is centered in the intermediate shaft bearing support bracket.

    Courtesy of FORD MOTOR COMPANY

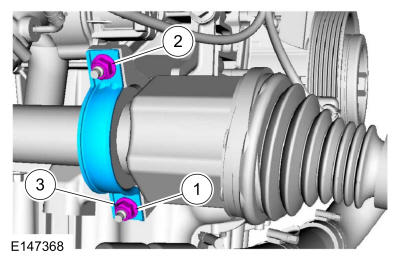

22. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque:Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the LH catalytic converter. REFER to: Catalytic Converter LH .

    All vehicles

24. Inspect the halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the dust shield.
    2. Inspect the LH halfshaft seal surface.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Make sure new component is installed.

    Install the new inner halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. REFER to: Halfshaft Seal LH .

27. NOTE: Do not fully install shaft at this time.

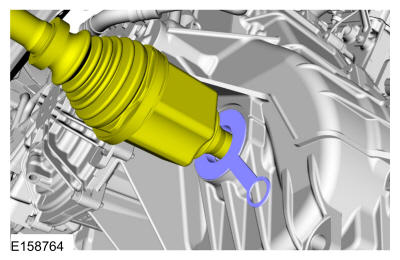

    Using part: AA5P-4N206-A, install the splines of the LH halfshaft through the halfshaft seal protector and the new halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
    NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

    Insert the LH halfshaft until the halfshaft retaining clip is fully seated.

    Courtesy of FORD MOTOR COMPANY

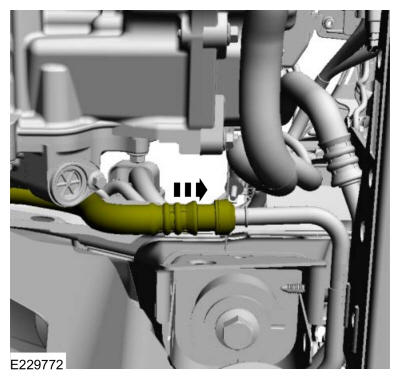

29. Connect the transmission fluid cooler to transmission cooler bypass valve tube.

    Courtesy of FORD MOTOR COMPANY

30. Install the transmission fluid cooler to transmission cooler bypass valve tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

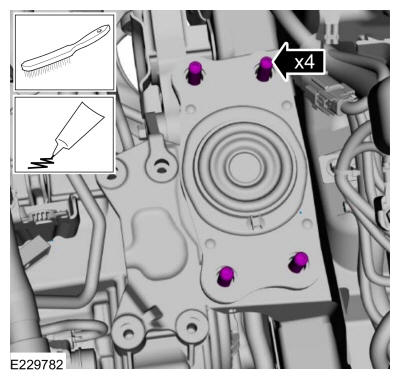

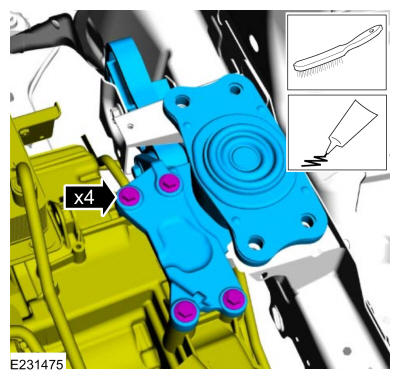

31. Install the transmission support insulator and bolts.

    Material: Motorcraft® Threadlock and Sealer / TA-25-B

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

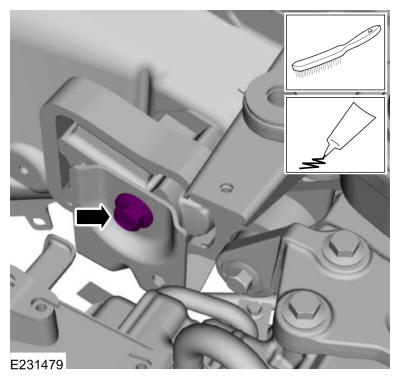

32. Install the transmission support insulator studs.

    Material: Motorcraft® Threadlock and Sealer / TA-25-B

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Install the rear roll restrictor bolt.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

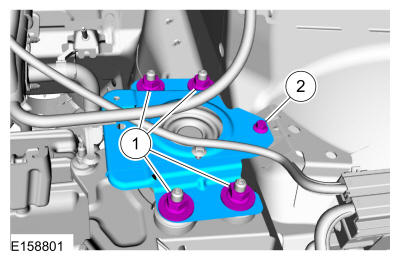

34. Install the transmission support insulator bracket, nuts and bolt.
    1. Torque: 66 lb.ft (90 Nm)
    2. Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

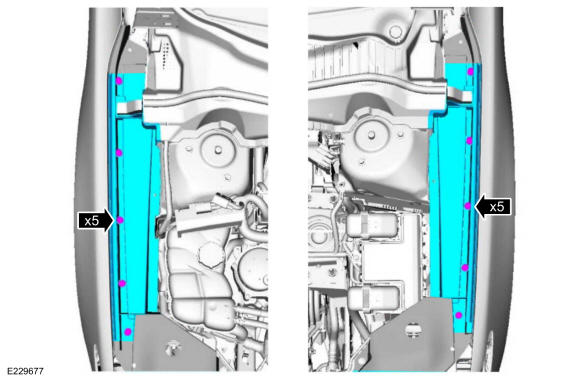

35. Install the RH and LH cowl filler panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

36. Attach the wiring harness retainer to the RH cowl filler panel.

    Courtesy of FORD MOTOR COMPANY

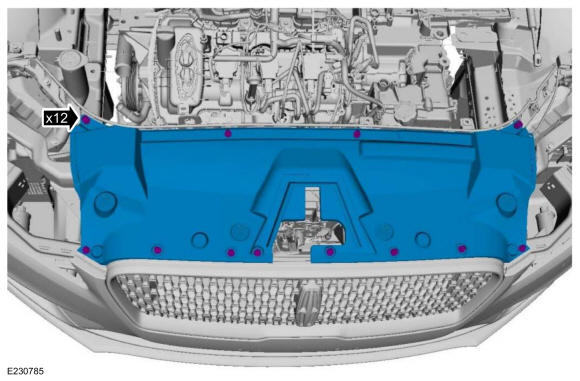

37. Install the radiator sight shield and the pin-type retainers

    Courtesy of FORD MOTOR COMPANY

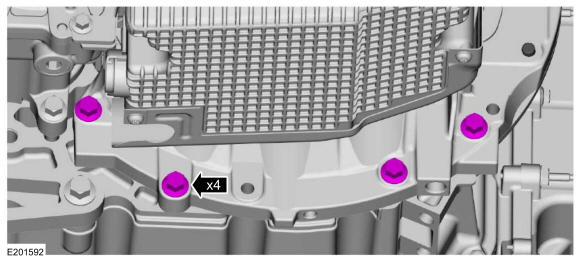

38. Install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Install the starter motor. REFER to: Starter Motor .

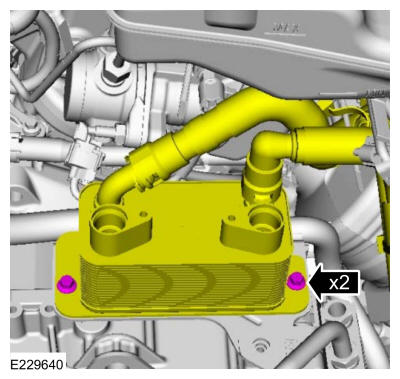

40. Position back the transmission fluid warmer and install the bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Install the transmission fluid warmer to cooler bypass cooler tube.
    1. Install a new bolt.

       Torque: 97 lb.in (11 Nm)

    2. Tighten the fitting.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

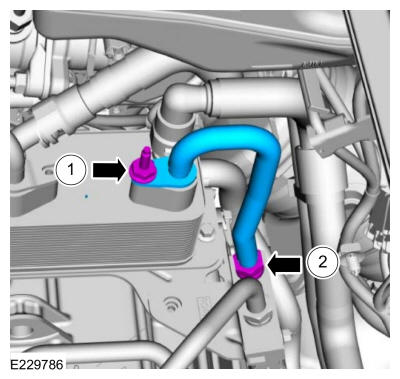

42. Install the transmission fluid warmer to cooler bypass cooler tube and new bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Install the transmission cooler tube bracket nut.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

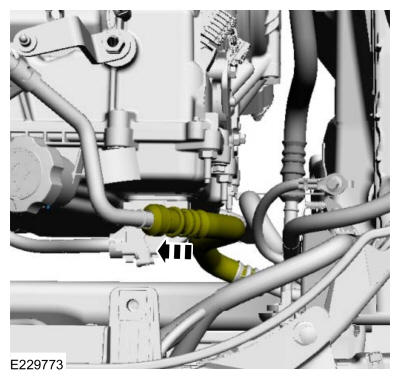

44. Connect the transmission cooler bypass valve to transmission fluid cooler tube.

    Courtesy of FORD MOTOR COMPANY

45. Install the transmission cooler bypass valve to transmission fluid cooler tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

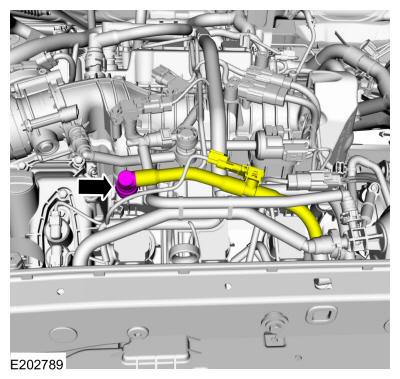

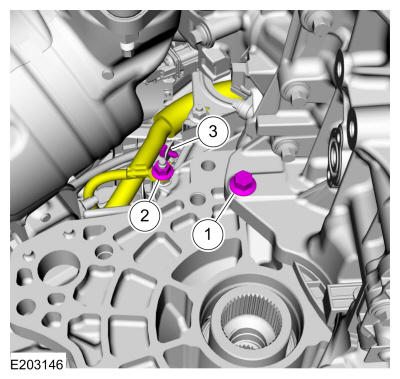

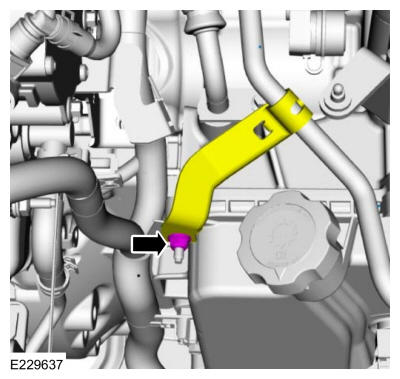

46. 1. Install the ground wire and the bolt.

       Torque

       : 159 lb.in (18 Nm)

    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

47. Connect the PCV tube.

    Courtesy of FORD MOTOR COMPANY

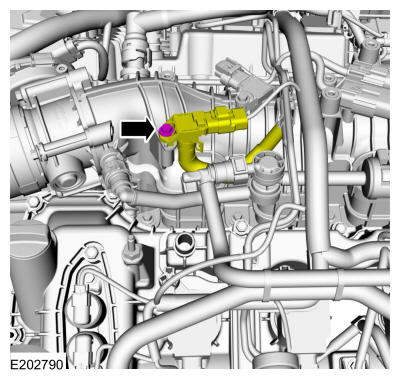

48. Install the vacuum harness pressure sensor and the bolt.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

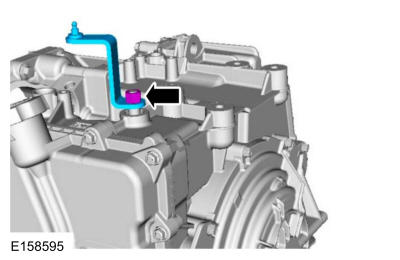

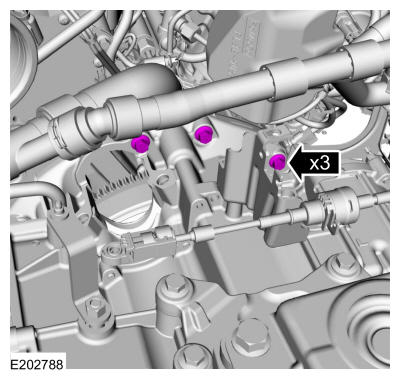

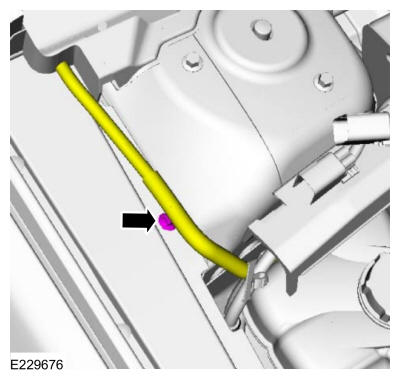

49. 1. Attach the cable to the transmission control lever.
    2. Position the cable and install the bolt.

    Courtesy of FORD MOTOR COMPANY

    All wheel drive (AWD)

50. Install the power transfer unit. REFER to: Power Transfer Unit .

    All vehicles

51. Install the front subframe. REFER to: FRONT SUBFRAME - 2.0L ECOBOOST (184KW 250PS) - MI4FRONT SUBFRAME - 3.0L ECOBOOST .
52. Install the following items:
    1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    2. Refer to: Air Cleaner Outlet Pipe RH .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Battery Tray .

53. Adjust the selector lever cable. REFER to: Selector Lever Cable Adjustment .
54. Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill .
55. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
