Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

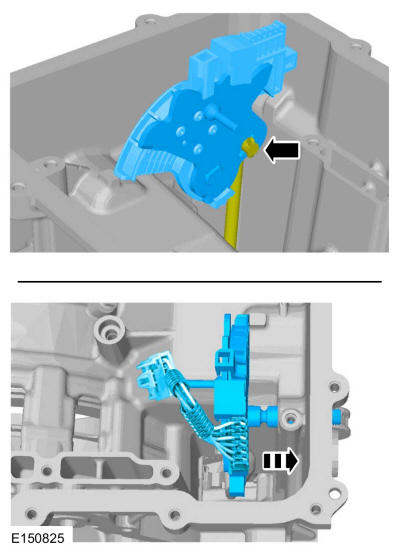

  1. Install the TR sensor.

    1. Position the park pawl actuating rod in the TR sensor.
    2. Install the TR sensor in the transmission case.

    GFD261565Courtesy of FORD MOTOR COMPANY

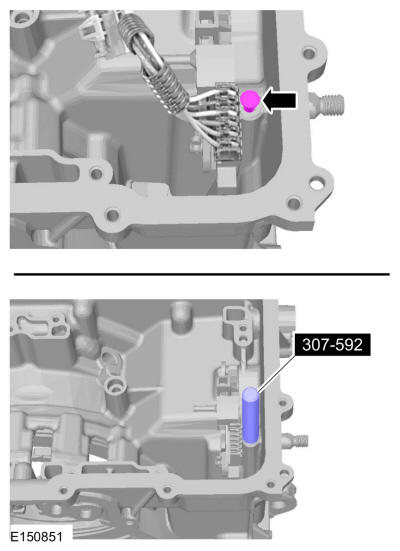

  2. Using the special tool, install a new TR sensor locking pin.Use Special Service Tool: 307-592 Manual lever Retaining Pin Installer.
    GFD261566Courtesy of FORD MOTOR COMPANY
  3. Install the main control valve body. REFER to: Main Control Valve Body .
  4. Adjust the selector lever cable. REFER to: SELECTOR LEVER CABLE ADJUSTMENT .
